“Foresight without execution is hallucination.” – Thomas Edison. This statement speaks directly to product development. A clever design stays an idea until it turns into a tangible, testable part.

UYEE Prototype connects this gap. We are a leading provider of precision fabrication services. We excel at transforming the adaptable thermoplastic ABS into durable components.

Titanium Precision Parts

ABS CNC Milling

Precision CNC Milling

Acrylonitrile Butadiene Styrene offers an excellent balance of properties. It provides strong impact resistance, reliable strength, and dimensional stability. This makes it a preferred choice for structural applications across many fields.

Our modern computer-controlled cutting process turns solid blocks into high-precision, functional items. This approach bypasses the need for expensive injection molds. It is a budget-conscious path for low to medium-volume runs and rapid development cycles.

Industries from automotive to consumer electronics depend on these durable plastic parts. They are used for jigs, fixtures, and end-use products. The key is partnering with an experienced manufacturer.

UYEE Prototype brings together material science with manufacturing expertise. We guide clients through design for manufacturability and achieving tight tolerances. This partnership ensures your vision is realized with quality and efficiency.

Introduction To CNC Machining ABS Prototypes

The journey from digital design to physical part rests on selecting the right combination of material and manufacturing process. For countless engineers, the answer lies in a common thermoplastic and a precise, computer-controlled fabrication method.

This synergy creates durable, functional items ideal for testing and use. Understanding the material’s science and the process’s advantages is the first step.

What Is ABS Material? Understanding Acrylonitrile Butadiene Styrene

ABS stands for acrylonitrile butadiene styrene. It is a widely used thermoplastic polymer. Its name reveals its three-monomer copolymer structure.

Acrylonitrile provides chemical resistance and thermal stability. Butadiene provides toughness and impact strength. Styrene offers rigidity and ease of processing.

This blend creates a material known for strong durability and good dimensional stability. It maintains its shape under load, which is crucial for structural applications.

“Your choice of material forms the basis of product performance.”

Engineering Fundamental

Key property metrics guide specification. Heat deflection temperature indicates how well a part performs under thermal stress. Rockwell hardness measures resistance to indentation.

Specialized grades, like ABS Flame Retardant, are available for additional safety requirements. This variant meets specific industry standards.

Why Choose CNC Machining For ABS Prototypes?

Several methods exist for creating plastic parts. Computer-controlled cutting stands out for functional models. It provides “true material behavior” since the item is milled from a solid block.

This preserves the full mechanical properties of the final production plastic. Other techniques, like vacuum casting, may use secondary materials that don’t match.

Process flexibility is a major advantage. Design iterations can happen rapidly without expensive tooling investment. It is perfect for low-volume runs and complex geometries.

The cost-effectiveness for small quantities is significant. High-quality surface finishes and precise details are achieved directly from the machine.

For functional testing, design validation, and presentation-quality models, this approach offers an optimal blend. It delivers fidelity, speed, and economic value.

At UYEE Prototype, our expertise in material science guides this selection. We ensure your components meet both performance and budgetary goals.

Advantages Of CNC Fabricated ABS Prototypes

Selecting the right method for creating plastic components depends on three fundamental pillars: economy, material performance, and precision. These advantages directly lead to reduced project risk and a smoother path from concept to validated product.

Cost-Effectiveness And Rapid Lead Times

The economic case for this fabrication method is strong. It eliminates the high upfront cost of injection molds.

This makes it ideal for quantities from a single piece to over a hundred. The entry price point for initial models is very low.

Speed is equally critical. At UYEE Prototype, project lead times can start at just 3 days.

This rapid turnaround enables fast design iteration. It significantly shortens your overall time-to-market.

Superior Material Properties: Strength, Toughness, And Dimensional Stability

The chosen thermoplastic offers remarkable performance. It offers high impact resistance and good tensile durability.

This inherent resilience and rigidity often outperform other commodity plastics at a similar cost. Components can absorb shock without failing.

Geometric stability is a critical property. It ensures parts maintain their precise shape and fit within assemblies.

This stability holds true across a range of environmental temperature conditions. It is essential for functional testing and end-use deployments.

Key Material Trait	Advantage for Engineered Components
High Impact Resistance	Withstands drops and sudden loads, ideal for housings and enclosures.
Good Tensile Strength & Stiffness	Helps parts retain structural integrity during tension and bending loads.
Strong Dimensional Stability	Maintains precise geometry and fit, which is critical for assemblies.

Precision And Tight Tolerances In Machining

Geometric accuracy is a cornerstone of our service. Standard machining accuracies are held to ±0.010 inches.

Tighter dimensional limits, such as ±0.002 inches, are readily achievable. For demands below ±0.002 inches, our experts conduct a manual review to ensure feasibility.

Smart design optimizes both overall cost and quality. Avoid specifying excessively tight dimensional requirements unless absolutely necessary.

Grouping features on the same axis planes minimizes machine complexity. Keeping internal corner radii and tapped hole sizes consistent reduces tool changes.

UYEE Prototype offers components in natural beige, white, or black. For surface finish, you may choose the standard “As Machined” look or a uniform matte “Bead Blast” surface finish.

“Precision in prototyping validates precision in production.”

UYEE Prototype Fabrication Principle

These advantages combine to deliver reliable, high-fidelity parts. They empower your engineering team to reduce risk and confirm performance with confidence.

Applications And Industries For ABS Prototypes

From sleek consumer gadgets to rugged industrial equipment, specific thermoplastics prove their worth through versatile application. The theoretical benefits of precision-fabricated parts become concrete when they meet real-world demands.

This section explores major sectors where these components excel. Each industry leverages unique material properties to solve distinct challenges.

UYEE Prototype has extensive experience across these diverse fields. We help clients translate design intent into functional, reliable items.

Consumer Electronics: Housings And Enclosures

The consumer electronics sector demands a delicate balance. Parts must be lightweight yet durable, aesthetically pleasing, and precisely fitted.

This plastic offers an ideal combination of impact resistance and excellent surface finishability. It protects delicate internal circuitry while providing a sleek, user-friendly exterior.

Common applications include laptop cases, television bezels, and game controller bodies. These housings and enclosures require perfect fit for internal components.

Home appliance bodies also benefit from the material’s good strength and dimensional stability. UYEE’s fabrication ensures tight tolerances for seamless assembly.

This results in presentation-ready models that look and perform like final products. It allows for thorough user testing and design validation before high-volume production.

Automotive Components: Interior Trim And Functional Parts

In the automotive world, components face a harsh environment. They must withstand temperature fluctuations, UV exposure, and physical wear.

Interior trim pieces, like dashboard panels and pillar covers, are prime examples. The material provides a desirable feel, finish, and cost-effectiveness for these visible parts.

Its toughness and rigidity are crucial for functional items under the hood or on the exterior. Applications include grilles, spoilers, and specific bumper components.

“The right material in the right place defines quality and safety in automotive engineering.”

Dimensional stability ensures these parts maintain their shape and fit across a wide temperature range. This property is non-negotiable for both safety and aesthetics in vehicle manufacturing.

From prototype to low-volume production, this approach allows for rapid iteration of complex geometries. It accelerates development cycles for both interior and exterior applications.

Industrial Manufacturing: Jigs, Fixtures, And Machine Housings

Industrial settings prioritize utility, durability, and cost-efficiency. Here, the focus shifts to custom tooling and equipment that streamline production.

Custom jigs, fixtures, and assembly aids are typical applications. These tools guide workers or machines during manufacturing, ensuring consistency and quality.

The material’s strength, machinability, and low cost make it perfect for these utilitarian roles. Protective housings for machinery and control panels are also common.

These enclosures and cable management parts shield sensitive electronics from dust, debris, and incidental impact. Rapid production of such custom components enables faster production line setup and modifications.

UYEE Prototype’s expertise ensures these industrial parts are robust and precisely made. They withstand the rigors of the factory floor, proving the material’s value from the design lab to operational deployment.

The versatility of this solution is clear. It supports innovation from initial concept through functional testing and into low-volume manufacturing.

By understanding sector-specific needs, UYEE delivers parts that perform as intended. This partnership turns ambitious designs into tangible, reliable components.

Why Partner With UYEE Prototype For Your ABS Needs

Your project’s outcome depends on a collaborator who understands both the science of materials and the art of fabrication. UYEE Prototype offers this dual expertise, guiding you to the optimal manufacturing process.

We provide deep knowledge of thermoplastics, including specialized grades for specific applications. Our team excels in precision fabrication, holding tight tolerances and machining complex geometries.

For functional testing and low-volume runs, computer-controlled cutting delivers true material properties in days. When appearance matters for small batches, vacuum casting offers a cost-effective alternative. High-volume production later benefits from injection molding.

We act as your consultative partner, offering design for manufacturability feedback to optimize cost and performance. Our rapid lead times and transparent pricing keep projects on schedule.

Value-added services like surface finishing and assembly deliver ready-to-use components. Submit your CAD files to our team for a professional review and quote. We can transform your design into a tangible success.

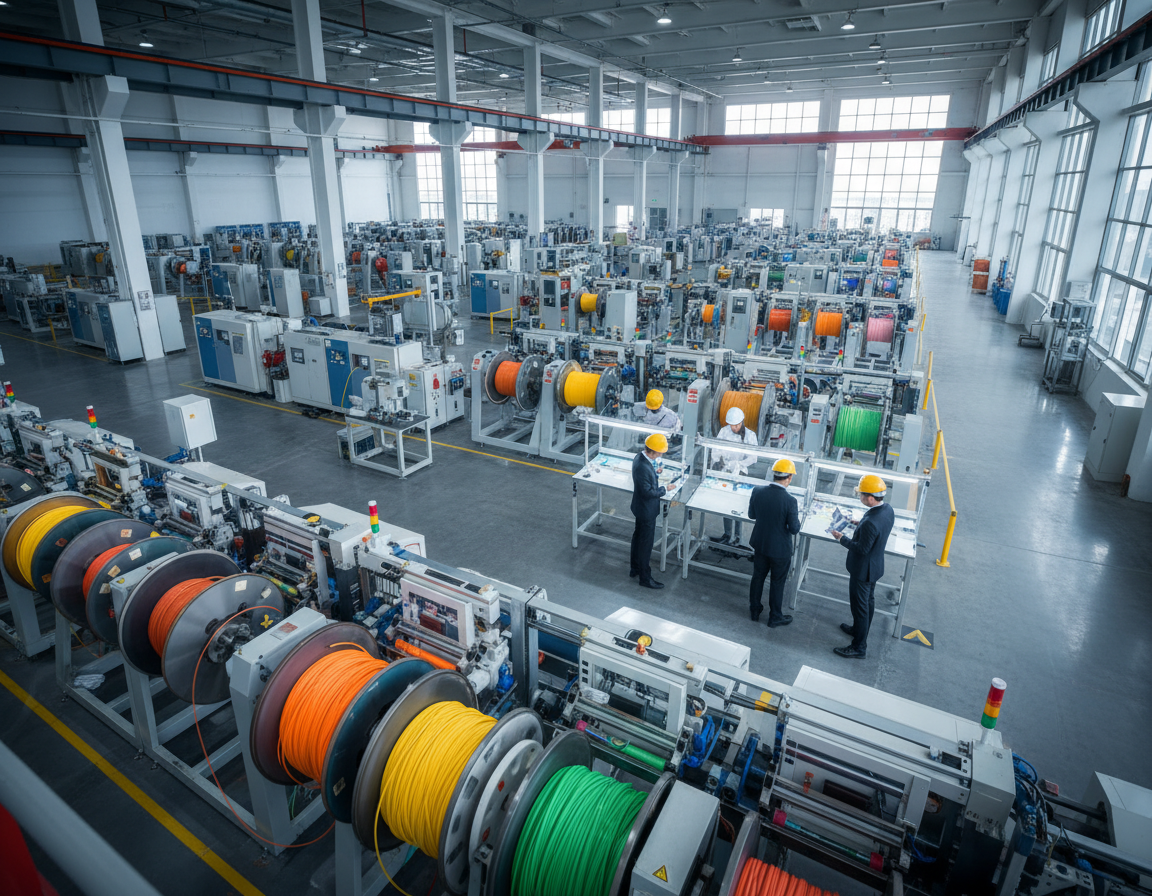

The FTTH Cable Production line is an integrated set of modules that converts glass fiber into ready-to-ship drop and distribution outputs with repeatable quality.
SZ stranding line
This overview helps operations leaders, process engineers, procurement teams, and students in the United States who evaluate how industrial production equipment turns fine fiber into durable cables for broadband service and communications networks.

At the heart of the line, the end-to-end objective is simple: protect the fiber, maintain low optical loss, provide pull strength for installation, and produce a cable that withstands inside and outside exposure.

Expert equipment means stable tension control, synchronized drives, standardized process windows, and clear documentation for customer sign-off. This article helps pair the right line configuration, materials, and test plan to the target product instead of purchasing machines first and fixing the process later.

Readers will map stages such as fiber prep, buffering/coating, stranding, strength member integration, sheathing (outer jacket extrusion), optional armor integration, and final testing and packaging.

Key takeaways include: A well-specified line reduces defects and ensures predictable delivery. Align the process before buying machines to save time and cost.

How A Fiber Optic Cable Production Line Works Today

Where last-mile drop and distribution demands meet factory practice.

Modern production lines convert fine glass fiber into finished products used in U.S. broadband rollouts. Last-mile drop cable and FTTH drop demand drives high volumes, so manufacturers emphasize consistent handling and compliance with standards.

Core Modules, Material Flow

Material follows a clear sequence: pay-off (unwinding) → guiding + tensioning → secondary coating/color application → organization and SZ stranding → strength member feed → jacketing and sheathing → cooling and curing → take-up plus testing.

Modules To Outcomes

Consistent fiber handling reduces attenuation and protects signal integrity for data and communications. Consistent jacketing helps installation and connector preparation. Inline monitoring flags loss events before reels ship.

• Indoor vs. outdoor use: different jacket compounds and buffering needs.
• Armored variants add steel tape or wire to improve rodent and crush resistance.
• Drop designs favor tight-buffered fibers plus simpler connector prep.

Procurement teams should see lines as modular. Plants add armoring or skip steps to fit the product type. Throughput is limited by curing and dimensional control, not only motor speed.

Define Product And Data Standards Before Buying Equipment

Kick off with a clear product definition that spells out cable type, core count, service environment, and end-use scenarios. That early definition narrows the modules your line must include, from tight-buffer units to SZ stranding modules and jacket extrusion equipment.

Select Standards & Measurable Targets

Choose fiber standards such as ITU-T G.652D class or bend-insensitive ITU-T G.657A1/A2 based on bend requirements and routing constraints. Document optical loss budgets, tensile strength, crush and bend limits, and environmental durability before vendor selection.

1. Identify the precise product type and fiber/core count so you can define modules and control requirements.
2. Define attenuation (loss) budgets and mechanical strength targets to guide material selection.
3. Define required materials (buffer polymers, jacket compounds) and confirm U.S. supplier availability.

Data Standards, Traceability, And Validation

Translate targets into factory information: captured process variables, batch traceability, and customer-required acceptance test reports. Use R&D pilot runs to validate settings and cut scale-up time.
FTTH Cable Production Line

Objective	Factory Implication	Typical Action
Low attenuation	Control of tension and alignment	In-line attenuation checks
Strong mechanical performance	Strength-element selection	Integrate aramid or metal
Bend-tolerant performance	Selecting the fiber type	Use G.657 variants

Build Quality Into The Optical Fiber: Core, Cladding & Coating Essentials

High-quality optical performance starts in the glass, where core purity and cladding design set the limits for signal loss.

Core + cladding make up the core layer structure: a solid ultra-pure silica core carries light while a lower-index cladding confines it. That geometry is the basis for low-loss transmission and stable optical behavior in finished cables.

From Preform To Drawn Glass Fiber

Manufacturing begins with preform laydown and consolidation. Moisture removal via a high-temperature furnace cuts defects that increase attenuation.

The draw step pulls glass into a micron-scale strand. Geometry control here ties directly to stable attenuation and predictable transmission performance. One blank can produce roughly 5 km of fiber, so process stability saves time and cost.

Primary Coating And Color Coding

Primary coating protects against scratches and handling damage; it is not the primary strength element. Color identification simplifies splicing, troubleshooting, and downstream fiber management.

1. Preform consolidation: remove contaminants and moisture.
2. Draw: manage diameter and tension for low attenuation.
3. Coating and color: protect and label each fiber.

Layer Element	Role	Buyer Verification
Core	Transmit light while minimizing attenuation	Define purity and loss specifications
Cladding	Confine light, control modal behavior	Confirm index profile and geometry
Coating (primary)	Scratch protection and color ID	Verify coating adhesion and color coding

FTTH Cable Production: Step By Step Line Setup From Buffering To Sheathing

A practical line setup takes each fiber from pay-off through buffering, stranding, and the outer jacket to a finished reel.

Secondary coating & fiber coloring stations apply dual-layer, UV-cured coatings (≈250 µm) and 1–12 channel color coding for identification and traceability. Consistent UV cure rates and stable web tension reduce mix-ups and rework.

Buffering And Materials

Tight buffering (600–900 µm) protects handling and simplifies connector preparation. Selecting Hytrel, PVC, or LSZH affects flexibility, temperature range, and flame/smoke performance.

SZ Stranding & Organization

SZ stranding uses alternating lay to balance geometry and improve cable flexibility. Servo control (up to 24 fibers) keeps lay pitch consistent and lowers loss risk.

Strength Members & Jacketing

Aramid yarn is the common tensile element; it delivers pull strength without stressing fibers during installation.

Next comes outer jacket extrusion with PVC, PE, or LSZH. Speeds often run 60–90 m/min and demand tight OD and concentricity control.

Armoring & Control Points

If crush or rodent resistance is needed, add steel tape or wire armor and control tension. Operators monitor tension, cure state, concentricity, OD, and cooling to maintain quality.

Process Step	Primary Control	Typical Value
Secondary coating	UV cure & tension	≈250 µm, high cure consistency
Tight buffer	Material choice	600–900 µm (Hytrel/PVC/LSZH)
Sheathing/jacketing	OD/concentricity	60–90 m/min typical

Optimize Production Speed & Process Control With Modern Automation

When factories run for 24/7 output, synchronized controls and tension systems become the backbone of reliable manufacturing.

PLC, HMI & Closed-Loop Tension For Steady Operation

Modern lines use Siemens PLC + HMI platforms to synchronize modules, manage recipes, and record process information. Closed-loop tension control protects the fiber during starts, stops, and speed changes.
Fiber Ribbone Line

Match Speed To Curing & Dimensional Control

Line speed is often limited where curing, cooling, or extrusion dimensional control falls behind. UV cure completeness, water trough stability, and chill capacity set the true ceiling.

Layout, Changeover & Procurement

Factory layout affects uptime: proper pay-off/take-up placement and protected fiber paths reduce damage and shorten changeovers.

• Design quick-change tooling and documented setup procedures to reduce changeover time.
• Specify industrial power (380 V AC ±10%) and typical ≤55 kW load when ordering equipment.
• Demand remote diagnostics, spare parts availability, and fast service response from the equipment company.

Focus Area	Operational Outcome	Typical Target
Synchronization	Less scrap, more repeatable runs	Siemens PLC + HMI
Closed-loop tension	Protects fiber; keeps loss stable	Closed-loop, high accuracy
Layout/changeover	Shorter downtime	Quick-change tooling + staging

Testing & Quality Control To Reduce Loss And Improve Delivery Reliability

Strong testing and clear QC turn raw fiber into reliable, field-ready cable reels.

Begin with optical verification. Inline attenuation testing and return loss checks confirm signal performance before reels leave the line.

Optical Checks & Signal Integrity

Attenuation testing is the key guardrail against performance issues. Higher loss readings point to handling damage, microbends, or contamination.

Return loss checks target reflections that can affect sensitive links and tight network margins.

Mechanical, Environmental Validation

• Tensile pull tests verify strength members and installation safety.
• Crush and bend tests simulate real-world installation stresses.
• Temperature cycling, moisture soak, and vibration tests reduce risk for outdoor and aerial routes.

Test Type	Objective	Typical Result
Loss test	Measure loss per kilometer	Pass/fail vs. spec
Mechanical validation	Validate pull, crush, and bend	Installation rating
Environmental tests	Recreate field conditions	Durability confirmation

Traceability links raw material lots, in-line data, and final test results to reel IDs. Proper reeling, labeling, and protective packaging preserve quality and speed customer acceptance and delivery.

Conclusion

A clear manufacturing plan links product targets to the exact line modules and control limits required for reliable output. Define the intended FTTH product, service environment, and measurable specs before selecting equipment or layout.

Fiber fundamentals (core, cladding, coating) establish the optical baseline. Careful handling upstream preserves signal integrity and keeps finished quality within acceptance limits.

Set buffering, organization/stranding, strength members, and jacket selection to match installation conditions. Use automation and closed-loop controls to maintain speed, reduce scrap, and keep delivery predictable in U.S. markets.

Discipline matters: implement comprehensive testing, reel-level traceability, and documented quality systems so customers can accept reels quickly. Next step: convert these points into a purchasing checklist (spec targets, utilities, layout, acceptance tests) before you request quotes or trials.

Precision Engineering Solutions: CNC-Machined Precision Parts

About seven in ten of today’s critical assemblies depend on narrow tolerances to achieve safety/quality and performance targets, highlighting how small variances affect outcomes.

Precision titanium machining manufacturing enhances component reliability and service life across auto, healthcare, aerospace, and electronic applications. It provides repeatable mating, accelerated assembly, and less rework for subsequent processes.

Here we introduce UYEE-Rapidprototype.com as a supplier committed to satisfying stringent requirements for compliance-driven industries. Its workflows integrate CAD/CAM, robust programming, and controlled systems to reduce variation and speed time to market.

US buyers can use this guide to weigh choices, set clear requirements, and select supplier capabilities that align with applications, budgets, and timelines. Inside is a practical roadmap covering specs and tolerances, machines and processes, material choices and finishing, industry use cases, and cost levers.

• Precision and repeatability improve reliability and decrease defects.
• Model-based CAD/CAM workflows enable consistent manufacturing performance.
• UYEE-Rapidprototype.com is positioned as a qualified partner for US buyers.
• Explicit, measurable requirements help match capabilities to cost and schedule constraints.
• Optimized processes cut waste, accelerate assembly, and reduce TCO.

Buyer’s Guide Overview for CNC Precision Machined Parts in the United States

US manufacturers need suppliers that deliver consistent accuracy, lot-to-lot repeatability, and predictable lead times. Purchasers expect clear timelines and parts that pass acceptance so assembly and testing stay on track.

What buyers need now: accuracy, repeatability, and lead times

Key priorities include tight tolerances, consistent batch-to-batch repeatability, and lead times resilient to demand changes. Strong quality practices and a controlled system minimize drift and build confidence in downstream assembly.

• Accuracy that meets drawings and function.
• Lot-to-lot repeatability that reduces inspection risk.
• Dependable lead times and transparent communication.

How UYEE-Rapidprototype.com helps precision programs

They provide responsive quoting, DFM feedback, and buyer-aligned scheduling. Processes employ validated machining services and stable programming to reduce delays/rework.

Bar-fed cells and lights-out automation support scalable output with reduced cycle time and stable accuracy when volume ramps. Early alignment on prints and sampling keeps QA/FAI on time.

Capability	Buyer Benefit	When to Specify
Validated machining services	Fewer defects, predictable output	Regulated/high-risk programs
Lights-out production	Shorter cycle times, stable runs	Large or variable volume production
Responsive quoting & scheduling	Faster time-to-market, fewer surprises	Rapid prototypes, tight schedules

Key Specs and Selection Criteria for CNC Precision Machined Parts

Defined, testable criteria translate prints into reliable results.

Tolerances & Finish with Repeatability Targets

Specify CNC precision parts tolerance targets for critical features. Targets as tight as ±0.001 in (±0.025 mm) are attainable when machine capability/capacity, workholding, and temperature control are proven.

Tie finish to functional need. Use grinding, deburring, and polishing to achieve roughness ranges (Ra ~3.2 to 0.8 μm) for seal or low friction surfaces on a part.

Volume planning and lights-out scalability

Align equipment/workflows to volume. For repeat high-volume runs, consider 24/7 lights-out cells and bar-fed setups to maintain steady throughput and changeovers fast.

Quality systems and in-process inspection

Mandate acceptance criteria with GD&T and FAI. Process control checks detect drift early and maintain repeatability during production.

• Use CAD/CAM simulation to refine toolpaths and limit rounding error.
• Verify ISO 9001/AS9100 and metrology capability.
• Document sampling and control plans for end use.

UYEE-Rapidprototype.com evaluates drawings against these benchmarks and suggests measurable requirements to de-risk sourcing decisions. That helps stabilize runs and improve OTD.

Precision-Driving Processes & Capabilities

Integrating 5-axis, live tooling, and finishing lets shops deliver ready-to-assemble parts with fewer setups and less handling.

5-axis milling and setup efficiency

Five-axis systems with automatic tool change processes multiple faces per setup for complex geometry. VMCs and HMCs enable drilling with efficient chip evacuation. That reduces re-clamps and improves feature accuracy.

Turning/Swiss for small precise work

Turning centers with live tooling can remove material and add cross holes or flats without additional operations. Swiss-type turning suits for slender/small parts in high volumes with tight concentricity.

EDM / Waterjet / Plasma & finishing

Wire EDM produces intricate shapes in hard alloys. Waterjet protects heat-sensitive materials, and plasma offers fine cutting for conductive metals. Final grinding, polishing, blasting, and passivation optimize surface and corrosion performance.

Capability	Best Use	Buyer Benefit
5-axis with ATC	Complex features on many faces	Reduced setups, faster cycles
Live-tool turning / Swiss	Small complex runs	Volume cost savings, tight runout
Non-traditional cutting	Hard or heat-sensitive shapes	Accurate contours, less rework

UYEE-Rapidprototype.com combines these capabilities and controls with disciplined machine maintenance to maintain repeatability and schedule adherence.

Choosing Materials for Precision

Choosing the right material determines whether a aluminum CNC machining design meets performance, cost, and schedule targets. Early material down-selection cuts iterations and aligns manufacturing with performance goals.

Metal options & controls

Popular metals: Aluminum 6061/7075/2024, steels like 1018 and 4140, stainless 304/316/17-4, Titanium Ti-6Al-4V, Cu alloys, Inconel 718, and Monel 400.

Compare strength-to-weight and corrosion behavior to fit the application. Use rigid fixturing and thermal management in machining to hold tight accuracy when machining tough alloys.

Engineering polymers: when and why

ABS, PC, POM/Acetal, Nylon, PTFE (filled/unfilled), PEEK, PMMA fit numerous applications from enclosures to high-temp seals.

Engineering plastics are heat sensitive. Reduced feeds and conservative RPM help dimensional stability and finish on the part.

• Compare metals by strength, corrosion, and cost to pick the proper class.
• Select tools and feeds for alloys such as Titanium and Inconel to cut cleanly and extend tool life.
• Apply plastics where low friction or chemical resistance is needed, tuning parameters to prevent warp.

Class	Best Use	Buyer Tip
Aluminum/Brass	Lightweight housings, good machinability	Fast cycles; check temper and finish
Steels/Stainless	Structural, corrosion resistance	Plan thermal control/hardening
Ti & Inconel	High-strength, extreme service	Slower feeds; higher tooling cost

UYEE-Rapidprototype.com helps specify material and testing coupons, document callouts (temperature range, coatings, hardness), and match equipment/tooling to chosen materials. That guidance shortens validation and lowers redesign risk.

CNC-Machined Precision Parts

Clear CAD with smart toolpaths reduce iteration time and protect tolerances.

UYEE-Rapidprototype.com turns CAD into CAM programs that generate optimized G/M code and simulated tool trajectories. The workflow cuts rounding error, trims cycle time, and maintains precision on the part.

Design for manufacturability: CAD/CAM, toolpath strategy, and workholding

Simplify features, pick stable datums, and align tolerances to function so inspection stays efficient. CAM strategies and cutter selection cut non-cut time and wear.

Apply rigid holders with solid fixturing and ATC to reduce changeover time. Early collaboration on threaded features, thin walls, deep pockets reduces risk of deflection and finish problems.

Sectors served: aerospace, auto, medical, electronics

Applications range from aerospace structural components and turbine blades to automotive engine items, medical implants, and electronics heat sinks. Each sector has specific traceability and cleanliness requirements.

Cost levers: cycle time, material utilization, and reduced waste

Efficient milling with strong chip evacuation and stock nesting reduce scrap and material spend. Planning from prototype to production keeps fixtures and machines consistent to protect repeatability as volumes scale.

Focus	Buyer Benefit	When to Specify
DFM-led design	Faster approvals, fewer revisions	Early quoting
CAM/tooling optimization	Shorter cycles, higher quality	Before production
Material nesting & bar yield	Waste reduction and lower cost	During production

As a DFM partner, UYEE-Rapidprototype.com, offering CAD/CAM optimization, fixturing guidance, and transparent costing from prototype to production. This disciplined system keeps projects predictable from RFQ to steady-state FAI.

Conclusion

In Closing

Tight tolerance control plus stable workflows converts design intent into repeatable results for critical industries. Process discipline and robust controls with proper equipment deliver repeatability on critical components across medical, aerospace, automotive, electronics markets.

Proven capabilities and clear requirements, backed by data-driven inspection, protect quality while supporting tight schedules and cost goals. Advanced milling/turning with EDM, waterjet, and finishing—often combined—cover broad part families and complexities.

Material selection from Aluminum alloys and stainless grades to high-performance polymers should match function, cost, and lead time. Thoughtful tool choice, stable fixturing, and validated programs lower cycle and variation so each workpiece meets spec.

Submit CAD/drawings for DFM review, tolerance checks, and a prototype-to-production plan. Connect with UYEE-Rapidprototype.com for consultation, tailored quotations, and machining aligned to your inspection and acceptance criteria.

Next-Gen Fiber Coloring Machine Platforms

More than 60% of FTTH lines utilize automated marking and dyeing to keep up with demand. Still, many producers miss the advantages of high-speed fiber coloring equipment. Such machines improve throughput while keeping quality consistent.

This piece unveils industrial compact fiber unit solutions for optical fiber and textile production. It covers the integration of a fiber coloring or dye machine within a draw-to-coating workflow and FTTH cable production line. You’ll see how high-throughput dyeing increases color coding, cuts manual handling, and supports inline proof testing.

Leading suppliers provide expert production technology training for customer teams. With R&D support, systems are tailored to exact requirements. Notably, reputable companies guarantee a 100% inspection rate before dispatching their products. They also maintain standard commercial practices, including T/T and L/C payment options.

Industry norms include a one-year warranty starting at installation. This includes parts replacement for quality defects. Buyers may incur travel and accommodation expenses for on-site service requirements. Packaging often uses PVC thin film for main units and wooden cases for smaller components. Custom packing can be arranged upon request.

Key Takeaways

• High-speed fiber coloring machine integration improves throughput and consistency in FTTH and textile lines.
• Vendors provide training, customization, and 100% pre-shipment inspection.
• Fiber dye machines improve inline proof tests and reduce manual spool handling.
• Common payment methods include T/T and L/C; warranty typically begins at installation for one year.
• Standard packing = PVC film + wooden crates; custom packing on request.

Overview of High-Speed Fiber Coloring Systems

High-speed fiber coloring systems deliver markings or colors that are consistent, without compromising fiber strength or clarity. These machines synchronize with the speed of fiber draw towers and coating lines, avoiding production delays. Focus areas include color accuracy, automated QC, and less manual handling. The result fits telecom and textile requirements.

Defining a High-Speed Fiber Coloring Solution

A true high-speed fiber coloring machine applies colorants or inks accurately at high speeds. It maintains precise control over marking width, contrast, and adhesion. This ensures optical loss and mechanical properties are not compromised. Features typically include solvent/UV inks, precise metering, and efficient curing for optimal results.

Speed, Accuracy & Uptime Benchmarks

Performance targets vary by use case. Single-line marking systems achieve speeds up to 3,000 m/min for basic codes. Ribbon coloring targets ~1,000 m/min with accurate codes and low scrap. Focus on registration precision, color consistency, and the ability to reproduce these results over long periods is critical.

Higher uptime is gained through automation, like automated spool handling and real-time testing. These innovations cut the need for manual checks and spool changes. Predictive maintenance and modular design lower downtime. The outcome is steadier production.

Applications across optical fiber and textile industries

In optics, use cases include FTTH marking, fiber draw tower, telecom color coding, and ribbon marking. These machines integrate with fiber draw towers and coating lines, ensuring a continuous production flow. Inline tests ensure every segment meets strength/clarity specs.

Textile industry techniques have been adapted to improve dye control, cut waste, and save energy in fiber coloring. Yarn/fabric learnings drive better fluid control, auto adjustments, and sustainability. Cross-pollination reduces time and improves quality across both sectors.

Benchmark	Optical Example	Textile Parallel
Typical top speed	Up to 3,000 m/min for single-line marking	High-speed yarn dyeing lines up to 1,000 m/min equivalent throughput
Accuracy	Registration within ±0.5 mm, stable color-code fidelity	Consistent color repeatability across batches
Uptime drivers	Automatic reel handling, inline proof testing	Automated dye dosing and closed-loop quality control
Integration	Seamless connection to fiber draw tower and coating lines	Integration with dyeing baths and finishing lines for minimal handling
Sustainability	Reduced scrap, solvent recovery, LED curing options	Lower water and chemical use via precision dosing

Fiber Coloring Machine Overview

Fiber coloring machines apply durable color codes to optical/industrial fibers. Precision applicators, fast curing, tension control, and smart sensors are used. This process ensures efficient production. It integrates cleanly with draw/coating lines. Additionally, it connects to inline testing and automation systems for streamlined operations.

The applicator or marking head applies UV inks or liquid dyes accurately. Then, LED modules or focused UV lamps instantly harden these inks. Fibers keep moving at speed without delay. Transport guidance and tension control systems maintain the fiber’s shape while it is being marked. Pumps/filters feed from reservoirs/tanks consistently. A PLC and HMI ease control, allowing for quick changes and adjustments. Sensors verify placement so every mark meets spec.

System Coordination

The applicator synchronizes deposits according to fiber movement, controlled by sensors. Curing locks marks for immediate downstream handling. Sensors check intensity and registration. On error, the system flags or rejects the affected segment. This ensures that speed, ink flow, and curing work in harmony, maintaining high-quality output.

Line Compatibility

Modules mount behind draw towers or on secondary coating lines. Different mounting options cater to various fiber types. It adapts to tight-buffer or loose-tube formats. Multiple coatings/profiles are supported. Many leading suppliers, including Sumitomo, Furukawa, and Corning, provide compatible equipment. The result is seamless integration for plants.

Inline Proof Test & Automation Integration

Directly after marking, inline proof testers check the fiber’s physical and optical quality. Defects feed back instantly for corrective action. It ties into automated dyeing and spool handling to reduce manual work. This integration significantly reduces downtime. It also synchronizes coloring, testing, and spooling for maximum efficiency.

Process	Module	Typical Benefit
Mark application	Applicator / Marking head	Precise placement; repeatable patterns at line speed
Ink supply	Modular ink tanks and pumps	Continuous feed; reduced changeover time
Curing	LED or UV lamp system	Fast hardening; lower energy use with LED
Fiber handling	Tension control and guides	Stable geometry; fewer marking defects
Quality assurance	Registration sensors and inline cameras	Real-time inspection; automatic rejects
Control	PLC / HMI with data logging	Recipe recall; production traceability
Line integration	Mounting kits for fiber draw tower and coating lines	Smooth inline fit; supports tight buffering
Automation	Interfaces for RHS and proof testers	Reduced manual handling; integrated traceability

Optical Fiber: Advanced Dyeing Tech

High-speed production demands both precision marking and rapid cure times. Modern dye tech gives durable marks with minimal performance impact. Techniques improve adhesion/consistency for singles and ribbons.

UV Inks + LED: Benefits

UV-curable inks cure quickly and produce durable, high-resolution marks. They stay in place during cabling and connectorization, resisting abrasion.

LED curing uses less power than mercury UV. It produces less heat, lengthens lamp life, and lowers noise, benefiting spool layout efficiency. Overall, LED is a greener choice for continuous production.

Color coding systems for multi-fiber and ribbon lines

Color coding helps with easily identifying various fibers and cables. Options span simple markers to advanced systems for 6/12-fiber setups.

Consistent color aids splicing/testing for faster installs. Good coding reduces handling time and field errors.

Case Example: GFP Series Speeds

GFP systems are optimized for fast optical cable marking. Its single-line models can mark at speeds reaching 3,000 m/min for uninterrupted tasks. The series also includes options designed for ribbons and bundled cables, reaching up to 1,280 m/min.

With inline proof tests, GFP supports buffering/verification add-ons. This versatility allows for adjusting marking capabilities without rebuilding the production setup.

Automated Dyeing and Handling

Modern automated dyeing equipment pairs accurate fiber secondary coating line coloring with efficient handling. This integration speeds up the dyeing process from application to curing and testing. It significantly reduces downtime. It also reduces manual work by linking stages in one flow.

Automatic Reel Handling (RHS)

Nextrom’s RHS eliminates frequent manual take-up changes. Operators avoid ~24 spool swaps/shift. Automation reduces repetitive work and improves machine efficiency.

Automated Break Recovery

Break recovery automation speeds the process of re-threading fiber after a disruption. Originally, manual re-threading was a common task, occurring up to four times per shift. Now, this automated solution greatly reduces downtime and preserves continuous production flows.

Labor reduction, error reduction, and safety improvements

Advances save labor by reducing spool changes and re-threading. Reduced physical handling cuts the risk of spool damage and cuts waste. Furthermore, the reduction in manual tasks lessens noise exposure and the risk of injury, improving overall safety on the production floor.

Metric	Manual	Automated	Impact
Take-up reel changes per shift	~24 changes (every 20 minutes)	0 changes with RHS	Eliminates 24 interruptions; higher uptime
Payoff spool changes	Baseline	Reduced by 50%	Less operator time; smoother feeding
Proof test break events per 1,000 km	2–6 breaks (~4/shift)	Automated recovery for all breaks	Faster restart; fewer manual interventions
Ink tank run length	Typical shorter cycles	Up to 1,000 km per acrylate tank	Lower consumable swaps; reduced maintenance
Noise and operator exposure	Higher; frequent handling	Reduced by optimized spools and LED curing	Quieter environment; less PPE required

High-speed fiber ribbon line and ribbon production methods

The modern fiber ribbon line combines coated fibers into a unified, flat ribbon. Geometry and attenuation are tightly controlled. Manufacturers use precise alignment, controlled glue application, and rapid curing. Production flows smoothly without sacrificing quality. FRP 05 formation lines and inline proof tests are critical at scale.

Ribbon creation begins with exact spacing and placement. A thin adhesive bead bonds fibers; tensioning combats micro-bends. Quick-drying stations solidify the adhesive, allowing ribbons to move at line speed. Controlled glue keeps optical quality and eases downstream steps.

FRP 05 lines excel in scale. They can craft ribbons with up to 24 fibers at speeds reaching 1,000 m/min. They unite precise tension, accurate ferrules, and synced capstans. Fiber pitch/alignment stay consistent across the process. Thus, FRP 05 is a dependable choice for CO/FTTH ribbon supply.

Inline proof testing ensures ribbon quality. It involves test heads that assess tensile strength and continuity right after the ribbon is made. Should they detect any weakness or breakage, the system either discards the flawed segment or adjusts automatically. Instant feedback cuts waste and stops bad ribbons before cabling.

Ribbon lines may add marking/color coding. This way, identifiers remain intact through subsequent processing. Pairing color coding with inline proof tests enhances traceability and streamlines quality control. Syncing glue/formation/testing yields clear benefits for throughput.

Process Stage	Key Function	Typical Performance Metric
Fiber alignment	Arrange coated fibers to target pitch and flatness	±5 µm registration
Glue application	Deposit controlled adhesive bead without excess	50–150 µm bead width
Curing	Rapid hardening to lock ribbon form	UV or thermal cure in
FRP 05 ribbon formation	High-throughput assembly for up to 24 fibers	Up to 1,000 m/min production speed
Inline proof testing	Detect weak bonds, breaks, and tensile issues	Immediate reject/feedback within 0.5 s
Marking and coding	Apply ID that withstands ribbon processing	Permanent color codes per fiber

How Coloring Integrates with Draw/FTTH Lines

Coloring modules require correct placement away from the glass to avoid affecting the cladding. Typically installed after primary coat or in secondary coat stages. This keeps marks on the exterior and preserves optical quality.

How coloring fits into the draw-to-coat workflow

Technicians integrate coloring modules directly with coating apparatus, allowing ink to cure on the fiber’s polymer layer. This setup keeps output consistency from the fiber draw tower and uses inline UV or LED light for immediate curing. The approach ensures precise color identification while preventing damage that could hinder performance.

Upstream and downstream interfaces for seamless production

Effective integration involves mechanical couplings, tension controllers, and synchronized control protocols. Together, these elements ensure seamless speed alignment and communication of operational statuses. Harmonization with stages like ribbonizing drives efficiency. Inline feedback optimizes output and reduces waste.

Examples of throughput improvements and reduced downtime

GFP marking systems can operate at speeds reaching 3,000 meters per minute, matching high-demand productions. RHS and fast break recovery significantly cut downtime. These advancements lead to notable efficiency boosts in FTTH cable production lines, reducing stoppages in extended operation periods.

Fiber Coloration: Maintenance and Warranty

Peak performance depends on clear warranty, solid service, and proper shipping. Pre-shipment agreement on inspection/acceptance/installation is essential.

Warranty

Warranties typically start at installation and last one year. Coverage focuses on parts with manufacturing defects. However, it excludes parts damaged due to misuse, normal wear, or external factors, putting the cost on the buyer.

Service support

Service support includes deploying onsite technicians and providing training through seasoned engineers. Renowned suppliers, including Siemens and Rockwell Automation, offer comprehensive training programs. They also ensure technician availability for setup and routine checks.

R&D-led customization for special lines is common. Suppliers conduct thorough inspections before shipping and provide spare parts kits to reduce downtime. Travel/lodging and certain transport costs are typically buyer responsibilities.

Spare Parts & Replacement

New systems come with spare parts packages, either included or as an option. During warranty, defective parts are replaced by the vendor. For repairs outside the warranty, transparent pricing and timelines are essential to avoid delays.

Topic	Supplier Role	Buyer Role	Remarks
Warranty period	Provide one-year coverage from installation	Request documentation and schedule acceptance test	Start date tied to factory acceptance or onsite commissioning
Service support	Deploy on-site technicians and offer training	Cover technician travel, accommodation, and local transport	Remote support may reduce on-site visits
Spare parts	Supply spare parts packages and fast replacements under warranty	Maintain inventory and order consumables as needed	Agree lead times and pricing for out-of-warranty parts
Packing & shipping	Use PVC film for main machines and wooden cases for auxiliary parts; offer custom packing	Specify special packing needs and handle customs	Custom packing may add cost but protects equipment during transit
Installation & acceptance	Provide assembly, alignment, and commissioning support per contract	Prepare site, utilities, and local labor; sign joint acceptance tests	Joint acceptance validates performance against agreed specs

Packing/Shipping/Installation

Standard packing: PVC film for main units, wooden cases for auxiliaries. Custom packing is available for fragile/long-haul shipments. Defining roles prevents delivery and setup confusion.

Pre-ship inspection and FAT reduce onsite issues. Post-install joint tests verify performance and start warranty. Defined roles for packing and installation smooth the transition, minimizing downtime.

Energy Efficiency & Sustainability

Modern lines cut operating costs and meet environmental goals. By upgrading curing, spool design, and consumable management, they deliver significant energy efficiency and improve workplace comfort. The result: quieter, cleaner, more productive floors.

LED vs. Traditional Curing

LED curing significantly reduces power consumption compared to traditional UV lamps. Less heat stabilizes temperatures and reduces stress on downstream gear. LEDs last longer, meaning fewer replacements and less waste.

Designs that reduce power consumption and noise

Redesigned spool profiles and smoother transport mechanisms reduce the demand on motors. At similar operational speeds, advanced spool designs have been shown to cut power usage by over 50% at speeds of 3,000 m/min and decrease noise by more than 10 dB. These innovations help lower overall power consumption and make hearing protection less essential.

Materials management: longer-lasting ink tanks and reduced waste

Advanced systems run longer on one acrylate tank. Up to ~1,000 km/tank reduces changeovers and waste. This efficiency also reduces the need for applicator changes and maintenance, decreasing downtime and the amount of replaceable parts needed.

Automation is crucial for sustainability. It minimizes human error through automated controls and proofing, which cuts down scrap rates. Together with LEDs/efficient spools, footprint shrinks and long-term costs fall.

What Fiber Coloring Learns from Textile Dyeing

Insights from textile dyeing equipment offer valuable lessons for fiber coloring, focusing on process control and repeatability. Modern textile methods stress closed-loop dosing and inline checks. The result is less waste and steadier quality.

Shared Principles with Yarn/Fabric Dyeing

The practice of yarn dyeing highlights the necessity for precise dye metering, tension management, and holding consistent geometry. Applying them to fiber yields uniform application and steady uptake.

Similarly, fabric dyeing machinery leverages step-by-step processes and recipe management to achieve consistent color. This approach improves yield and reduces rework over long runs.

Automation and Quality Monitoring

Textile plants employ automated dye control, utilizing closed-loop metering and spectrophotometric feedback to achieve desired shades accurately. When these systems are adapted for fiber lines, they hold consistent coat weights and minimize color variations over time.

Inline QC uses fast spectrometers and cameras for precise tweaks. They catch deviations and drive real-time automated corrections.

Adapting textile coloring solutions to optical and industrial fibers

Optical fibers demand extremely low levels of contamination, precise curing processes, and strict tension controls. Recipe servers, automated ink handling, and analytics are scaled to fiber. They are tuned for minimal volume applications, delivering cleanliness and efficiency.

With software control/analytics and ink best practices, waste drops significantly. These steps also improve sustainability and safeguard optical fiber performance.

Feature	Textile Gain	Fiber Adaptation
Closed-loop dosing	Consistent shade across lots	Maintains coat weight; integrates with automated dye control
Tension & geometry control	Uniform penetration and hand	Protects fiber integrity; reduces microbends
Inline spectrophotometry	Rapid pass/fail color checks	Detects mark variance without damaging fiber
Recipe management	Fast changeovers, fewer errors	Quicker recipe swaps for different fiber IDs
Ink handling systems	Lower waste, safer storage	Low-contamination delivery systems for sensitive optics

Purchasing & Payment Terms

When buying industrial equipment, weigh price, delivery times, and support. Define payment terms early for fiber coloring buys. Vet credentials and align on training/testing expectations.

Payment methods often include T/T and L/C options. Clarify full vs. milestone T/T or L/C at shipment. Clarify the preferred currency, any bank fees involved, and who’s responsible for amendment charges.

Select suppliers by history, milestones, and references. A common path: wire/cable in 2005, optical by 2006. Assess their longevity and breadth of international installs to measure their reliability.

Develop a criteria list to judge competing quotes. Include warranty, packing/shipping, and installation roles. Insist on documented testing and maintenance agreements before making a commitment.

• On-site Training: Define on-site training scope and who covers engineer travel/lodging
• R&D customization: Confirm drawings and tailored designs for special needs
• Inspection/Testing: What is the pre-shipment inspection policy and can buyers witness factory acceptance testing?

Procurement Item	Buyer Action	Supplier Detail
Payment terms	Negotiate schedule	Acceptable methods: T/T, L/C; milestone triggers; bank fee responsibility
Warranty	Obtain written clause	Coverage period, excluded parts, on-site cost responsibilities
Installation & training	Set scope and dates	Included hours, trainer qualifications, buyer travel costs
Spare parts & consumables	Request kit list	Recommended packages, lead times for ink tanks and applicators
Acceptance testing	Define tests	Witness options, documented results, remediation steps

Before final selection, check references and review past projects. Clear terms and proven competence reduce risk. This supports a smooth commissioning phase.

Summary

Modern fiber coloring plus LED/UV curing and tight line integration improves throughput and color fidelity. These innovations enable marking speeds of thousands of meters per minute. They prove particularly effective in applications ranging from Fiber To The Home (FTTH) to industrial use. The outcome is a significant drop in cycle times and waste.

The role of automation cannot be overstated. Automation combines dyeing, reel handling, and break recovery. It reduces spool changes and manual steps. Consequently, this boost in efficiency leads to less downtime, minimized errors, and a noticeable cut in labor expenses. A complete package—training, spares, warranty—reduces lifecycle risk.

Design improvements deliver sustainability and financial benefits. LED curing, efficient spools, and long-run tanks reduce energy, noise, and materials. Through standardizing payment methods like T/T or L/C and insisting on thorough pre-shipment inspections, operators secure consistent machine performance. Strategically, it improves long-term ROI for fiber coloring assets.

Reliable Medical Device Manufacturing Providers

Within healthcare innovation, precision and reliability are essential. This sector, producing life-saving tools—from basic instruments to advanced diagnostics—works under stringent global regulations. Singapore’s MedTech landscape exemplifies this balance, blending meticulous craftsmanship with smart automation to meet evolving patient needs.

Advances such as AI-led quality checks and IoT-enabled lines now improve https://amt-mat.com/cleanroom-vs-white-room-assembly-for-medical-device-manufacturing efficiency while maintaining safety. These shifts help manufacturers respond quickly to regulatory changes and keep output consistent. Singapore’s position as a regional hub amplifies these capabilities, offering solutions that meet both regional demands and international standards.

What sets leading providers apart? A dual focus on traditional expertise and next-gen innovation. Comprehensive testing and real-time monitoring help each product meet precise specifications. As healthcare needs grow more complex, trusted partners must deliver not just compliance, but forward-thinking approaches that anticipate tomorrow’s challenges.

Quick Takeaways

• Producing healthcare tools demands extreme precision and strict global safety adherence
• In Singapore, MedTech unites craftsmanship with advanced automation
• Modern technologies like AI and IoT improve production efficiency and reliability
• Top providers pair compliance with inventive problem-solving
• Comprehensive quality control systems are essential across all production stages

Medical Device Manufacturing: Best-Practice Overview

Building reliable healthcare tools requires precision at every stage. With rising demand, facilities adopt advanced methods such as 3D printing alongside traditional techniques. This combination enables customization plus scalability for varied needs.

From Manual Crafting to Digital Precision

Earlier production depended on manual machining and standard molds. Today, robotics and automated systems enable intricate designs with micron-level accuracy. For instance, 3D printers can produce patient-specific surgical guides in hours versus prior weeks.

Balancing Speed and Safety

Modern facilities deploy real-time sensors to track quality during production. Instant deviation flags reduce waste and uphold compliance. Analytics further optimize workflows, cutting lead times by as much as 40%.

Method	Materials	Customization	Typical Applications
CNC	Metals/Plastics	Moderate	Surgical tools
Injection Molding	Thermoplastic resins	Low	Disposable Tools
Additive Manufacturing	Polymers/Alloys	Extensive	Prosthetics, Implants

Regional hubs such as Singapore prioritize cleanrooms and staff training. Continuous-improvement programs keep processes aligned to evolving global standards and support rapid prototyping.

Innovation in Medical Device Manufacturing

Modern production strategies integrate advanced digital solutions with materials breakthroughs. The fusion improves precision needs while streamlining development across Singapore’s tech-driven facilities.

Digital Integration Across Production

Advanced algorithms analyze equipment patterns to predict maintenance needs weeks in advance. 24/7 sensors adjust parameters automatically to optimize output. Smart systems reduce downtime ~35% and maintain quality.

Cybersecurity measures now form the backbone of networked environments. Encrypted protocols and layered authentication protect sensitive patient info post-breaches. Frequent vulnerability assessments support compliance with global standards.

Layer-by-Layer Fabrication Advancements

• Custom implants matched to anatomy via detailed 3D scans
• Complex surgical guides produced on demand within 48 hours
• Lightweight polymer structures impossible with conventional methods

Additive techniques enable rapid prototype iteration with biocompatible materials. This approach can reduce development timelines by about 60% versus traditional tooling. Facilities throughout Asia use these capabilities for tailored, scalable solutions.

Key Technological Shifts in the Industry

Digital–physical fusion is transforming production landscapes. Modern facilities leverage interconnected technologies that analyze real-time data streams, enabling smarter decisions across workflows. This shift helps meet strict compliance needs while boosting operational agility.

Embracing Industry 4.0 and Smart Factory Solutions

Cloud-based platforms in next-gen factories link equipment to decision-makers. Sensors track material flow and energy use, feeding predictive models. Three key benefits emerge:

• Digital twins simulate production lines to prevent bottlenecks before they occur
• Machine learning algorithms adjust parameters for peak equipment performance
• Automated compliance checks flag issues during assembly

Advances in Robotics and Automation

Robotic arms now adapt to variable tasks through vision systems and force sensors. Collaborative https://amt-mat.com/why-cleanroom-matter-in-medical-device-manfacturing/ robots work alongside engineers, handling repetitive jobs with 0.01mm precision. These advancements reduce errors by 42% in quality-critical processes.

With adaptive control, products change quickly without retooling. Users see cycle times ~30% faster and accuracy at ~99.8%. These capabilities are vital as customization demands rise.

Core Processes & Technologies in Production

Precision engineering drives modern production methods for specialized components. Choosing the right approach depends on design complexity, required materials, and scale needs. This section reviews techniques shaping the current landscape.

Injection Molding and CNC Machining Techniques

For high volumes of identical parts, injection molding dominates. One mold can output thousands daily at <0.1mm tolerances. Typical uses include disposable tools and protective housings.

CNC systems carve complex shapes from metals or plastics using computer-guided tools. This method suits final products requiring surgical-grade precision. Setup costs can be high, but consistency for critical geometries is unmatched.

Additive Manufacturing’s Emerging Role (FDM/SLA)

3D printing overcomes traditional limits with layer-based construction. FDM produces quick prototypes from thermoplastics for concept validation. SLA printers achieve mirror-smooth finishes with liquid resins, perfect for detailed models.

Advanced systems produce functional parts in durable polymers and metals. These methods enable custom solutions like patient-matched implants. Rapid iteration cycles reduce development timelines dramatically compared to conventional approaches.

Process	Volume Suitability	Lead Time	Benefits
Injection Molding	10,000+ units	2–8 weeks	Low per-unit cost
CNC Machining	500-5,000 units	1-3 weeks	High accuracy (±0.025mm)
FDM	Low volume (1–100)	2-5 days	High design flexibility
SLA	1-50 units	1–3 days	Very fine resolution (0.005mm)
SLS	10-500 units	3–7 days	No support structures needed

Across methods, material selection is critical. Use biocompatible polymers and sterilizable alloys to meet strict standards. Multiple techniques are combined to balance speed, cost, and performance.

Regulatory Compliance with Quality Assurance

To navigate global standards, align technical expertise with documentation rigor. Producers must balance evolving requirements while maintaining operational efficiency across international markets.

Global Standards, Including FDA

The FDA categorizes healthcare tools into three risk-based classes. Class I (e.g., bandages) need general controls; Class III implants require clinical trials and PMA. Eight key areas guide compliance:

Area	Requirement	Implementation Focus
QMS	21 CFR 820	Process validation
CE	EU MDR	Clinical eval
ISO-13485	Risk management	Supplier audits
Medical Device Reporting	eMDR submissions	Post-market surveillance

Facilities in Singapore adopt hybrid frameworks to satisfy ASEAN and EU markets simultaneously. Real-time data tracking helps teams adapt when new amendments emerge.

Implementing Rigorous Change Management Procedures

Modification protocols prevent compliance gaps during product updates. Teams evaluate design, labeling, and production impacts prior to changes. Core steps include:

• Document change rationale with risk analysis
• Securing cross-department approvals
• Refresh training materials inside 72 hours

Automated CAPA flags deviations during checks, triggering corrective workflows. This proactive approach reduces recall risks by 28% compared to manual methods.

Optimizing Efficiency & Supply Chains

Modern https://amt-mat.com/mim-manufacturing-process/ production success balances financial targets with operational agility. Teams align pricing strategies with market realities and build resilient supplier networks. Key elements include accurate costing, responsive logistics, and adaptable assembly.

Cost Targets & Market Analysis with Supplier Strategy

Set viable prices by starting with competitor benchmarks. Analyze 5-7 similar products to identify pricing corridors. Factor in material costs, regional tariffs, and perceived value. Singapore-based teams often use predictive tools to simulate market reactions before launch.

Diversify suppliers while keeping quality intact. Keep 2–3 verified vendors for critical components. Implement performance scorecards tracking delivery accuracy and defect rates. Automated contracts trigger reorders at safety-stock thresholds.

Selecting the Right Partner for Scalability

Evaluate potential collaborators via four lenses:

• Proven expertise in regulated sectors
• Capacity to handle 300% volume spikes
• Integrated QC at each assembly stage
• End-to-end services from prototyping to cold chain logistics

Top Asian partners provide modular lines able to switch batches to mass output in 72 hours. This flexibility proves vital when entering new markets or addressing sudden demand shifts.

Final Thoughts

As healthcare evolves, production methods adapt to meet new challenges. Blending smart tech with patient-centric design reshapes how critical tools reach care settings. Innovation drives progress—from 3D-printed bone-matched implants to AI-optimized supply chains—across the industry.

Expertise in precision systems places Singapore at the forefront. Facilities create synthetic blood vessels and drug-delivery mechanisms via layered fabrication. These breakthroughs demonstrate how engineering creativity expands treatment options worldwide.

Three trends will shape future development:

• Adaptive AI woven through design and testing
• Custom solutions leveraging real-time health data analytics
• Eco-conscious materials that meet strict safety rules

Balancing technical capability with regulatory agility is key to success. Organizations embracing digital transformation while maintaining rigorous quality protocols will lead the next wave of healthcare improvements. The way ahead blends human expertise and machine precision to produce smarter, safer solutions for everyone.

AMT: Seasoned MedTech Contract Manufacturing.

Finding a reliable manufacturing partner is key for about 85% of medical device startups. It directly impacts if their product launches on schedule.

Based in Singapore, AMT Pte Ltd is an experienced in contract manufacturing. Backed by years of AMT’s contract manufacturing of medical devices experience, AMT supplies comprehensive medical device manufacturing services. AMT manages everything—from materials sourcing and rapid prototyping to precision assembly and market launch.

With ISO 9001 and ISO 13485 certifications, AMT ensures regulatory compliance for exports to the U.S. and EU. Compliance focus reduces OEM risk and helps accelerate regulatory filings.

Medical device OEMs, startups, and product teams consider AMT essential. AMT helps optimize production, cut costs, and get products to market faster. Companies can scale capacity with AMT while maintaining design control and secure IP protection.

Fundamental Insights

• AMT integrates OEM expertise with complete production services.
• Strong regulatory certifications: ISO 9001, ISO 13485, and alignment with 21 CFR Part 820.
• Services cover sourcing, prototyping, assembly, and final release for global markets.
• Outsourcing to AMT lowers capital expenditure and shortens development timelines.
• Ideal for OEMs, startups, and product teams seeking a reliable Singapore partner.

Medical Device Market Outlook and Growing Need for Contract Manufacturing

Worldwide demand for medtech is rising rapidly. Experts believe the market will be worth over $595 billion by 2024 and might potentially reach $625 billion by 2027, growing around 6% each year until 2030.

Growth drives demand for scalable production, broader portfolios, and stringent quality from partners offering leading medical device manufacturing services.

Advances in cardiac, orthopedic, brain, urinary, and diabetes technologies are causing a surge in new products. These areas need tight-tolerance parts, electronics, and sterilizable components. To get these, many producers of medical devices are turning to outsourcing.

They do this to leverage specific tooling, automated processes, and checking methods without large capital outlay.

Outsourcing helps accelerate market entry. With facilities, cleanrooms, and expertise, contract manufacturers compress design-to-launch timelines. Partnerships are vital for remote-control and connected health devices to scale effectively.

Singapore is a leading hub for medtech supply and logistics. It has talented engineers, follows global rules closely, and is near many Asian markets. This makes Singapore well-suited for contract manufacturing of medical devices by companies like AMT, handling both small and large orders well.

As makers of medical devices focus more on their main skills, they look for the best contract manufacturing partners to reduce risks and speed up product launches. Singapore partnerships combine domain expertise, robust supply chains, and deep manufacturing to deliver complex products worldwide.

Why OEMs choose contract manufacturing of medical devices

Original equipment manufacturers (OEMs) work with specialists as production needs grow to keep focus on designing the product, regulatory strategy, and market entry, while experienced teams handle manufacturing—a strong fit for innovating under strict quality.

Focus on Core Competencies: R&D, Marketing, Regulatory

Enabling engineering focus on R&D and regulatory planning improves outcomes. By outsourcing production, they can reallocate effort to testing, labeling strategy, and market outreach. Partnering with AMT enables design revisions while maintaining audit-ready traceability.

CapEx Avoidance with Scalable Production

Smaller companies face high equipment and cleanroom costs; teaming with AMT for custom medical device manufacturing avoids these big expenses. AMT has the infrastructure ready, enabling quick prototypes or full production without heavy capital purchases.

Speed Advantages: Rapid Prototyping to Market

In competitive fields, speed is key—telehealth devices and wearable pumps need rapid development. With AMT, rapid prototyping/testing/transfer shortens development and speeds approvals.

OEM Need	What AMT Provides	Benefit to OEM
Regulatory documentation	ISO-aligned QMS with validation support	Smoother audits, faster approvals
Prototyping & iteration	Rapid tooling, electronics integration, and small-batch runs	Faster cycles, reduced time-to-market
Production scale-up	Automation with validated processes	Predictable lead times and lower unit costs
Cost management	Lean methods with supply-chain control	Lower CapEx, improved margins
Special builds	Custom manufacturing for disposable and electronic devices	Access to multidisciplinary expertise without hiring

Partnering with AMT transforms development via expertise, equipment, and quality systems, enabling faster patient access—smart for growth-focused companies.

AMT and contract manufacturing of medical devices

AMT provides a complete service from prototype to production; clients get single-point accountability with AMT as OEM and contract partner—simplifying buying, building, and shipping complex devices.

AMT manages full assembly contracts and tailors production to client needs, offering rapid prototyping, commercialization planning, and ramp-up—each step traceable to accelerate updates and reduce market-entry risk.

Full assembly under an end-to-end service model

Engineering experts at AMT team with OEM designers to refine designs for manufacturing, cutting rework, shortening production time, and improving output; AMT manages sourcing, quality checks, and final assembly.

Compliance: ISO 9001, ISO 13485, 21 CFR Part 820

ISO 9001/13485 with 21 CFR Part 820 processes ensure audit-ready, globally compliant devices.

Cleanrooms, tooling & automation at AMT

AMT plants feature cleanrooms, advanced tooling, and automation for scale; automation cuts errors and ensures detailed part tracking to meet sterilization and cleanliness requirements.

Manufacturing Core: Molding, PCBA, Precision Assembly

AMT uses advanced methods for medical device manufacturing, handling low and high orders with the same quality focus so hospital, clinic, and home-care products stay top-notch.

Injection molding yields durable, sterilizable housings/brackets/adapters with cost control and cleanliness compliance.

Printed circuit board assembly (PCBA) is central for modern medical electronics; AMT builds heart monitors, wearables, and telehealth modules with controlled soldering and full traceability, enabling complex devices.

Precision assembly merges mechanics and electronics; skilled techs and rigorous inspection ensure quality with approved components.

Lot control and supplier vetting manage risk and maintain compliance across components.

Quality Systems, Compliance & Risk Management

Strong quality systems are key for safe medical products; AMT aligns to ISO 9001/13485 and 21 CFR Part 820 for Singapore and FDA expectations, with checkpoints in design, production, and release to lower risk and build trust.

QMS aligned with FDA & ISO

AMT keeps detailed procedures, strict work instructions, and robust training; internal audits, supplier checks, and management reviews maintain adherence, reducing errors and helping with multi-region regulatory documentation.

Design Transfer, V&V, Documentation

AMT smoothly connects OEM engineering with factory scale-up, verifying and validating designs to confirm performance; detailed records and DHFs expedite submissions and support lifecycle maintenance.

Supply-chain risk mitigation and component traceability

AVL management with serial/lot control prevents issues and protects integrity through supply fluctuations.

An experienced CM such as AMT ensures quality, compliance, and risk control end-to-end.

Case studies and success stories showcasing AMT expertise

AMT is known for tackling demanding projects in respiratory therapy and telehealth; case studies show how partnering with AMT speeds development, ensures quality, and meets regulations in Singapore and abroad.

Ventilator Telehealth Project and Remote Ops

As a Tier-2 supplier, AMT played a vital role in the first telehealth ventilator supporting manual and remote control—cutting PPE use and allowing one clinician to monitor many patients from a single station—showcasing expertise in connected-care devices.

Respiratory Therapy: Assisted Cough Examples

AMT built systems for high-frequency chest vibrations, lung expansion, and cough assistance, maintaining airway patency with Positive Airway Pressure during breaks and using clean air-path control—requiring exact PCBA, precise molded fluid paths, and clean packaging—proving leadership in respiratory devices.

Disposable Surgical Components: TURP Electrodes

AMT produces single-use TURP electrodes in stainless steel or tungsten, delivered sterile—demanding material control, traceability, and sterile packaging—highlighting proficiency in disposable surgical manufacturing.

Cross-project learning helps accelerate new products; insights from ventilators and respiratory builds inform wearable insulin pumps and surgical tools—making AMT a smart partner for scaling capabilities and speeding market entry.

Commercial Advantages: Cost and Timeline with AMT

Working with AMT lowers upfront costs by avoiding cleanrooms and machinery, freeing funds to design and market entry.

Purchasing scale and sourcing expertise secure quality parts at better costs, supporting competitive device pricing.

Quick prototyping and automated processes accelerate development—moving swiftly from prototype to full production and helping meet clinical and regulatory deadlines sooner.

Timing is key for products like wearable insulin pumps; AMT’s in-house testing and supply chains have accelerated such programs.

Scaling from pilots to volume stays compliant and consistent, enabling multi-market entry.

Outsourcing lets internal teams focus on sales and support while AMT handles production and regulation, aiding faster market entry.

With AMT, costs drop, timelines compress, and scale grows—accelerating revenue and enabling expansion.

Technical collaboration: engineering support, prototyping and design for manufacturability

Technical collaboration starts with clear goals and early alignment; AMT engineers join OEM teams to shape build, choose materials, and propose assembly methods—reducing design risk and speeding development while strengthening partnership.

Early Engineering Collaboration

Experience-informed reviews catch risks early and suggest cost-saving refinements—a major edge for custom devices.

Fast Prototyping and Test Loops

Fast prototypes→tests→iterations shorten the path to final design and reduce late changes.

Design for Manufacturability

DFM aims to simplify builds by reducing part count and easing assembly; consolidating parts into modules boosts yields, reduces cost, and enables smoother scaling.

Stage	AMT Role	Benefit
Concept & early design	Architecture review, material selection, risk assessment	Reduced technical risk and clearer development roadmap
Prototype	3D prints, functional and PCBA prototypes	Faster validation and regulatory data for submissions
Iteration	Performance tests, user trials, design refinements	Improved reliability and fewer late revisions
DFM	Part consolidation, tooling recommendations, assembly simplification	Lower cost per unit and higher production yield
Scale-up	Pilot runs, process validation, supplier integration	Smoother transfer to volume production under a contract manufacturing partnership with AMT

When seeking custom medical device manufacturing, clients benefit from problem-solving engineers; emphasis on prototypes, testing, and DFM boosts readiness and strengthens confidence in a long-term AMT partnership.

Choosing a contract manufacturing partner in Singapore: what to look for

Selecting a good manufacturer is vital to product quality, regulatory success, and speed to market; Singapore offers global shipping, skilled talent, and strong compliance—compare carefully to preserve project value when choosing AMT or others.

Certifications and proven track record

Check ISO 13485 and ISO 9001 with 21 CFR Part 820 compliance; review quality manuals, CAPA, and DHRs; look for proof in respiratory care, telehealth, and disposable surgical tools before selecting a contract with AMT.

Facilities & Logistics

Audit cleanrooms, tooling/molding, PCBA, automation; onsite checks confirm capacity and monitoring; Singapore’s hub speeds global logistics.

IP Protection, Communication, Partnership

Ensure secure project management and design handling; protect IP with controlled access and qualified suppliers; evaluate engineering support and supply continuity; confirm ability to scale across target markets.

Selection Area	Checks	Why it matters
Regulatory Compliance	ISO 13485, ISO 9001, 21 CFR Part 820, FDA-aligned QMS	Market readiness with reduced regulatory risk
Technical	Cleanrooms, molding, PCBA, automation, tooling	Supports reproducible quality and scalable manufacturing
Domain Experience	Relevant case studies in key domains	Shortens onboarding and improves first-run yields
Logistics/Location	Proximity to ports, ASEAN channels, lead times	Reduces transit delays and inventory costs
Commercial & Legal	NDA terms, IP controls, contract flexibility, pricing models	Asset protection with scalable terms
Communication & Culture	Tools, reporting, audits	Supports transparency and long-term collaboration

Ask for customer feedback and conduct site visits to validate claims; pilot a small batch to assess process and supply fit—proper diligence builds confidence in a long-term partnership with AMT or another top medical device firm.

Future trends affecting medical device contract manufacturing

Personalization and digital acceleration drive the future; flexible tooling, data systems, and skilled people will be essential.

3D printing and related tech support small-batch, patient-specific parts—delivering faster care with less waste.

Smart systems and analytics improve manufacturing quality and safety, catching issues early and supporting release readiness; AMT will apply smart tech to maintain high standards.

Focus areas include cardiac and orthopedic products, which demand high-precision manufacturing—providers must grow services to keep pace.

Telehealth requires secure software and robust electronics; remote monitoring products highlight the need for close collaboration with manufacturing partners.

Manufacturers must combine automation with human skill for complex builds; those who choose wisely will excel in medtech by selecting the right projects.

Final Thoughts

AMT’s medical device contract manufacturing helps research-focused OEMs expand, with ISO 9001/13485, 21 CFR 820, cleanrooms, and molding accelerating compliant entry.

Projects like telehealth ventilators and single-use TURP electrodes prove the value of partnering with AMT—broad technical skills and assured quality—making outsourcing a strong option for growth across regions.

AMT focuses on early engineering collaboration, fast prototyping, and efficient procurement; for Singapore and global OEMs exploring outsourcing, amt – contract manufacturing of medical devices can be pivotal, increasing capacity and ensuring regulatory readiness while saving time and money.

Fiber-to-the-Home Cable Production: Manufacturing Process Explained

Surprising fact: in excess of seventy percent of new broadband deployments in the U.S. now depend on fiber networks that need precise manufacturing to achieve required performance.

Shanghai Weiye OFC Equipment manages complete SZ stranding line manufacturing, from selecting brand fibers like Fujikura® or Corning® SMF-28e to final test reports that deliver 100% QA.

Our drop designs fit aerial, ducted, and direct-buried installation, with low-smoke zero-halogen (LSZH), PVC, and PE jacket options and core counts from 1 to 4 cores. We provide single-mode OS1/OS2 and OM2–OM4 grades plus ITU-T G.652D and ITU-T G.657 variants, Pantone-matched sheath colors, and logo printing.

Automated machines and high-precision equipment stabilize line speed and keep repeatability high. Typical lead times are four to five days for orders < 100 km and seven to ten days under 500 km, with an MOQ of 1 km and free-replacement warranty for quality problems.

Continue to see how materials, testing, and support combine to lower lifecycle cost and pair the right product with your network.

• Shanghai Weiye OFC Equipment delivers complete production and laboratory testing for U.S. deployments.
• Multiple jacket choices and fiber grades support varied installation environments.
• Automated lines and machines deliver stable quality and reliable optical performance.
• Quick lead times, low minimums, and recognized brand fibers keep procurement predictable.
• Complete reports and after-sales warranty back product reliability and compliance documentation needs.

Expert FTTH manufacturing by Shanghai Weiye OFC Equipment

When deadlines and performance are critical, Shanghai Weiye OFC Equipment delivers customized drop cables with full test documentation.

As a specialized maker and supplier, Shanghai Weiye OFC Equipment combines specialized equipment with tight material control. We offer custom builds and services for residential and MDU rollouts. Every order includes 100% quality assurance and complete test reports.

Our lab runs high heat, salt spray, and vibration testing to verify durability. Jacket options cover LSZH, PVC, and PE. Designs include bow-type flat and figure-8/self-supporting styles and support brand fibers such as Fujikura and Corning® SMF-28e.

• Controlled production lines and production checks for auditable shipments.
• Technical support for requirements, pilots, and scaling.
• Modern fixturing and calibration minimize variation so every cable meets operator standards.

How We Produce FTTH Cable

At Shanghai Weiye OFC Equipment, manufacturing steps are matched to network specs, combining brand fiber choices with rigorous test routines.

Optical fiber selection and brand options

We match Fiber coloring machine to bend radius, attenuation, and deployment type. Options include OS1, OS2, OM2–OM4 and ITU-T G.652D, G.657.A1/A2. Brand fibers such as Fujikura and Corning® SMF-28e are available to meet procurement standards.

Strength Member Options

Strength members employ dielectric FRP or galvanized steel wire. FRP is ideal where non-conductive runs are required. Steel wire adds tensile strength for long-span aerial runs and bonding/grounding needs.

Extrusion & Process Control

Jacket options include LSZH for indoor flame safety, PVC for flexibility and ease of handling, and PE for outdoor UV and moisture resistance. Closed-loop control of temperature and capstan ratios keeps line speed stable and dimensional tolerances.

Member	Dielectric FRP	Steel wire
Primary use	Electrical isolation	High-tension aerial runs
Key benefit	Lightweight, inert	High strength
Installation note	Simple terminations	Requires grounding

In-Process and Final Testing

Inline geometry and concentricity checks run during manufacturing. Final optical tests verify attenuation and return loss. Each order includes a 100% test report and lab results from high heat, salt-spray, and vibration trials to qualify field handling and drop terminations.

Typical lead times are under 100 km in 4–5 days and 7–10 days for < 500 km. Lot records and FAI approvals provide traceability and compliance for U.S. programs.

Our FTTH Drop Cable Types and Structures

Shanghai Weiye OFC Equipment offers a focused portfolio of FTTH drop designs that cover tight indoor routes and exposed aerial spans. Each option pairs tested materials with geometry tuned for field termination and consistent optical performance.

The flat bow-type drop minimizes footprint for risers/ducts. It reduces bend loss for easy routing in hallways and MDUs.

Aerial Self-Supporting Options

Self-supporting FTTH drop designs use a support messenger to handle tension. Choose FRP (dielectric) for electrical isolation or steel wire when bonding/grounding and extra tensile strength are required.

Layouts & Strength Members

We offer both dielectric and metallic strength member configurations to match safety and EMI rules. Center loose tube and flat unitube types balance crush resistance and Fiber coloring machine for fast terminations.

Indoor vs Outdoor Jackets

Jacket choices include LSZH for flame-retardant, low-smoke indoor use and PE for outdoor UV and moisture resilience. Each series is qualified for mechanical and optical quality before shipment.

Type	Application	Strength element	Jacket
Bow-type flat	Indoor risers and MDUs	FRP (dielectric)	Low-smoke zero-halogen
Self-supporting (aerial)	Overhead spans	Steel wire or FRP	Polyethylene
Central loose-tube	Higher-count builds	FRP	LSZH or PE
Unitube flat	Low count, quick strip	FRP/Steel	LSZH/PE

Production line equipment that ensures quality and speed

Automation and sensor-driven feedback at Shanghai Weiye OFC Equipment cut manual handling and increase throughput for patch cord prep.

Our production line uses automated machines that cut and strip drop patch cords to increase output and cut labor variability.

The CLX-BPO2 auto-stripping machine uses PLC + photoelectric control. One cycle is about 1.5 seconds, giving ~20 terminals per minute in production.

Auto Cut & Strip Capabilities

The equipment strips LSZH and PVC jackets and trims FRP or steel strength members to precise stub lengths. Cylinder-driven actuators provide quick, repeatable motion and minimize downtime.

PLC/photoelectric control for precision and repeatability

PLC logic + photoelectric sensors deliver precise positioning and closed-loop control. Inline checks update SPC charts so operators can adjust drifts before defects grow.

Item	Capability	Result
Machine	Auto-strip, ~1.5 s cycle	High throughput
Drive	Pneumatic cylinders	High speed and reliability
Material handling	LSZH & PVC; FRP & steel	Clean, accurate preps
Control	PLC/photoelectric with in-line SPC	Consistent quality, lower rework

• Automated waste ejection and ergonomic loading keep the line clean.
• PCPs document calibration and key parameters.
• Integrated assets and trained operators support FTTH volume targets without sacrificing accuracy.

What the CLX-BPO2 Adds

The CLX-BPO2 provides industrial-grade strip/trim to our line, reducing cycle time while keeping prep consistent.

Shanghai Weiye OFC Equipment deploys the CLX-BPO2 to increase throughput and standardize prep quality. The unit runs at an approximate cycle time of 1.5 seconds, yielding about 20 terminal preparations per minute in production.

PLC/photoelectric control enable precise detection and repeatable actuation. That control helps keep strip lengths and reserved strength stubs within tight tolerances.

Line Speed

Typical operation speed is 1.5s per cycle. This enables steady throughput under normal production conditions.

Supported jacket and reserved strength lengths

The CLX-BPO2 strips LSZH and PVC jackets with an adjustable jacket strip length from 17.5–35.0 mm. Reserved stubs are adjustable from 7.0–11.0 mm to fit common termination hardware.

FRP & Steel Member Handling

The machine cuts FRP/steel strength elements cleanly while protecting neighboring fibers. Custom tooling are offered for nonstandard sizes to maintain precision.

• Auto-eject scrap and sensor-triggered start reduce idle time.
• Small footprint (L40 × W18 × H18 cm), 50W at 110–220V, and 11 kg weight ease integration into workcells.
• Cylinder-driven motion and closed-loop control boost reliability and lower maintenance interruptions.

Specification	Rating	Benefit
Cycle time	~1.5 s (~20/min)	Supports high-volume runs
Strip lengths (A)	17.5–35.0 mm	Compatible with common connectors
Stub (B)	7.0–11.0 mm	Meets strength and termination needs
Power/Size	110–220V, 50W; 40×18×18 cm	Easy integration into existing equipment

Using this machine, Shanghai Weiye OFC Equipment standardizes terminal prep so field teams get drop parts install-ready. The CLX-BPO2 helps our production lines meet volume goals without sacrificing quality.

Custom Specs for Your FTTH System

Shanghai Weiye OFC Equipment configures every order to meet your network requirements and simplify deployment. We pair concise options with predictable manufacturing windows so your teams get install-ready reels.

Choose 1–4 core designs with single-mode or multimode fiber. Options include OS1, OS2, and OM2–OM4 along with G.652D/G.657 variants to match your optics and connector plans.

We Pantone-match sheath colors for quick field identification and consistent asset tagging.

Jacket materials, print legends, and branding

Select LSZH/PVC/PE jackets to suit route and safety requirements. Custom legends/logos aid inventory/warranty tracking.

Lengths, Packaging & Special Builds

Standard put-ups are 1/2/4 km with custom reels and packaging to suit storage and handling. Choose bow-type flat or self-supporting designs and FRP or steel members to meet span and isolation needs.

Choice	Typical	Advantage
Length	1 / 2 / 4 km	Simpler staging and reels
Jacket	LSZH / PE / PVC	Indoor/Outdoor fit
Design	Flat bow / Self-supporting	Flexible routing/span

As a supplier, Shanghai Weiye aligns runs to your schedule and provides docs that lists final specifications for easy on-site QA.

QA, Testing & Documentation

Shanghai Weiye OFC Equipment builds checkpoints into production so every item ships with recorded acceptance data.

Lab Testing: Heat, Salt Spray & Vibration

Our lab runs elevated-temperature exposure, salt fog corrosion, and mechanical vibration to qualify materials and assemblies. These tests simulate field stresses for indoor and outdoor use.

Full Test Reports for Every Reel

Every fiber optic cable includes a 100% test report that logs attenuation, return loss, and geometry where applicable. Final QC gates prevent nonconforming shipments before they leave the factory.

Audit Trail and Compliance

Batch records link tests to reels/serials so audits and claims are easy to verify. Documentation follows common customer templates to accelerate approvals and receiving inspection.

• Line checks and final inspection reduce field failures and lower warranty events.
• QA packages include specifications confirmation and formatted data for quick review.
• Ongoing trend analysis inform preventive maintenance and raise long-term reliability.

Trial	Purpose	Outcome
Heat exposure	Thermal stability	Pass at target temperature
Salt-fog	Corrosion robustness	Qualified for outdoor use
Vibration	Mechanical robustness	Reduced field failures

Pricing and cost drivers for FTTH drop cable

Budget planning for a drop starts with fiber and jacket choices and is shaped by volume and customization.

Typical prices range broadly—from about $30–$1,000 per unit—based on fiber grade, jacket material, reel length, and design structure.

Materials, Grade, Jacket & Structure

The primary cost drivers are fiber grade, sheath material, and the structural type chosen for deployment.

Self-supporting structures and steel members raise material and labor input. Custom colors, logos, and print legends add setup and impact pricing on small runs.

Order length, volume, and customization impact on price

Longer reels and higher volume orders reduce unit cost. Short runs often include setup charges and higher per-unit charges.

• Changeovers and special cutters extend lead time and add cost.
• Clear RFQs with schedule alignment let Shanghai Weiye OFC Equipment match quotes to delivery windows.
• Framework agreements and indexed pricing stabilize budgets over phases.

Driver	Price impact	Recommendation
Optical grade	High impact	Right-size spec to budget
Sheath material	Medium impact	Evaluate LSZH vs PE
Order length / volume	High impact	Consolidate runs to cut unit cost

U.S. Lead Times, MOQ & Delivery

Shanghai Weiye OFC Equipment keeps lead times/logistics clear so planners can align staffing and sites. Predictable windows cut downtime and control costs when a rollout is underway.

Production Windows & Capacity

Typical production windows are 4–5 days for < 100 km and 7–10 days for < 500 km. We plan capacity to match your rollout milestones and to keep deliveries on time.

The service team provides updates/tracking so installation teams can plan arrivals. For tight schedules, we reserve contingency capacity to pull in critical-path orders.

MOQ and Rationale

The MOQ is 1 km. This reflects line setup such as wire and jacket die adjustments that consume start-up material and scrap.

We review your put-ups and staging to choose reel sizes that cut waste and handling. Batch releases can balance inventory holding with more frequent small-site deliveries.

Where and How to Deploy

Site conditions dictate whether a self-supporting aerial, duct pull, or direct-buried run is the right choice for a project.

Aerial vs Duct vs Direct-Buried

For aerial runs, Shanghai Weiye OFC Equipment recommends self-supporting designs with correct strength members to manage sag/tension for long-term stability.

Duct installations perform best with low-friction jackets and crush-resistant constructs so pulling avoids fiber damage. PE jackets are common for underground and buried paths where moisture resistance matters.

Direct-buried designs require proper depth control per local codes and moisture barriers to protect the fiber core long-term.

Indoor Riser/Plenum & ONT

Indoor riser/plenum routes prefer LSZH to meet smoke/flame codes. Flat drop profiles strip cleanly and present controlled strength stubs for fast ONT terminations.

We advise on steel vs FRP (dielectric) strength members based on bonding needs, lightning risk, and hardware fit. Standardized prep from the production line shortens install time and minimizes scrap.

Deployment	Key design	Installer note
Overhead	Self-supporting, steel or FRP	Check tension and messenger hardware
Underground duct	Low-friction jacket, crush resistance	Use pull tape + lubricant
Direct-buried	PE jacket, moisture barrier	Follow depth/warning tape codes
Interior	LSZH jacket, tight bend support	Maintain bend radius at wall penetrations

Our approach ensures a consistent install experience across indoor outdoor transitions. That reduces callbacks, faster activations, and stable field performance for your system.

Comprehensive Support & After-Sales

Our team coordinates testing, scheduling, and installation guidance to avoid surprises in deployment.

Shanghai Weiye OFC Equipment offers engineering support from early requirements capture through approved drawings and pre-production builds. We deliver documentation templates and clear installation notes so field crews work from the same plan.

After-sales service includes fast response, RCA, and corrective action. All products ship with full test reports and traceability to help QA acceptance.

• 24/7 availability for status and technical support.
• Warranty with free replacement if any quality problems are confirmed.
• Coordination of line schedules for expedites and urgent changes.
• Configuration control so shipped items match agreed specs consistently.

Support area	Scope	Benefit
Engineering	Spec review & pre-production builds	Fewer field issues
Testing	Lab trials & 100% test reports	Traceable quality
Service	Fast replace + RCA	Lower downtime

Wrap-Up

Select Shanghai Weiye OFC Equipment for custom drops, quick lead times, and full traceability.

We deliver customized FTTH drop solutions that combine materials with validated manufacturing and lab tests. Every reel includes a 100% test report and documented lab trials to support field acceptance in the United States.

A robust production line, including CLX-BPO2 prep assets, reduces variability and speeds turnaround. Our equipment and machines standardize strip and stub lengths so installers get consistent results at turn-up.

From fiber selection to jacket, printing, and packaging, we balance performance and cost to extend service life. Dedicated support guides scheduling, logistics, and after-sales care so your deployment stays on plan.

Get in touch with Shanghai Weiye OFC Equipment to align specs, timeline, and volume. We stand behind every fiber optic and optic cable shipment with lab validation and responsive service.

Cast-Iron Gate Valves: Practical Features, Benefits, and Uses

Could a single, well-made valve cut maintenance time and keep water systems running longer?

At Yaxing Valve, I manufacture and supply Cast Iron Gate Valve Manufacturer and support their performance and service for U.S. clients. This line is engineered for longevity in waterworks and light-industrial systems.

Every valve combines a rugged cast-iron body, a precision-machined wedge guide, and simple handwheel operation. The result is dependable shutoff, simple maintenance, and consistent performance in building mechanical rooms, fire protection loops, and utility distribution.

I work with specifiers to speed submittals and deliver clear details: sizes, connection types, pressure classes, and optional accessories. My site also keeps account preferences and carts with cookies so repeat orders are simple.

If you’re seeking a practical swap or economical pick for upcoming projects, compare my cast iron gate benefits with your current hardware to see lifecycle value and real-world fit.

Reliable Flow Control: Why I Trust Yaxing Valve Cast Iron Gate Valves

I personally validate each product at Yaxing Valve, so I can recommend our hardware with confidence for demanding U.S. jobsites.

Rugged cast-iron body engineered for industrial performance

I build every unit with a robust cast iron body that resists deformation under load. Accurate machining and metal-to-metal seats deliver tight shutoff when it matters.

Shaped for maximum flow and low pressure drop

The internal path is optimized to lower turbulence and pressure loss. This helps pumps operate efficiently while reducing energy consumption.

• Dimensions and testing are validated to ANSI norms and internal criteria.
• I refine stem/wedge/bonnet interfaces to reduce friction and maintain consistent torque over time.
• Body thickness targets balance durability with manageable handling weight.
• Support docs include tests and standards to help procurement finalize quickly.

Feature	Benefit	Spec Point
Robust iron body	Strong structural integrity	Dimensional stability verified
Flow-optimized gate	Less headloss	Improves pump efficiency
Finished stem/handwheel interfaces	Smoother operation	Stable torque for extended life
Test documentation	Faster spec approval	ANSI-referenced reports

Cast Iron Gate Valves—Materials, Design Details, and Key Performance

I break down body, sealing, and stem options to simplify selection and ordering.

Materials: body, bonnet, and wedge

Material stack-up: cast-iron body and bonnet, precision-machined wedge, metal-to-metal seat interface for dependable shutoff in water service and general industry.

Stem and handwheel configurations

For compact layouts, I offer non-rising and inside-screw stem options. Each screw thread form and packing arrangement is documented in my product details.

Performance limits and standards

I provide qualified pressure/temperature ranges and ANSI-aligned end connections so engineers can confirm fit quickly.

• Stem/handwheel interface tuned for steady torque.
• Optimized internals minimize pressure loss through the gate.
• Clear series IDs and submittal specs accelerate approvals.

Part	Material / Type	Rating	Remarks
Body and Bonnet	cast iron	Up to 150 psi	ANSI flange dimensions, welded/bolted options
Valve wedge	Machined metal	Service temp −20° to 180°F	Metal-seat interface; smooth finish
Operating stem	Inside-screw / non-rising	N/A	Threads/packing documented
Series	YX-100 and YX-200	2″ to 12″ sizes	Part numbers simplify bidding

Applications, Installation, and Operation in Today’s Industrial Environments

I help contractors and owners place these valves where they perform best in modern loops. My aim is to keep selection, installation, and checks straightforward so crews wrap up commissioning with no call-backs.

Use cases: waterworks, building systems, general industry

Use a full-bore unit where low restriction matters — long mains, service feeds, and bypass lines benefit the most.

For mechanical rooms and industrial loops with limited headroom, I favor non-rising stem or inside-screw designs.

Installation guidelines

Protect the body during handling by lifting at rated points and avoiding flange stress. Verify end alignment before final torque to avoid leaks and distortion.

Select compatible gaskets, torque in a cross pattern, and space supports to prevent line sag.

O&M notes

Set the handwheel for comfortable access and verify free stem/handwheel movement after packing adjustments.

Perform periodic torque checks under pressure, inspect the wedge and packing, and confirm the pressure/temperature range against your media. Log tag numbers in your maintenance account and link work orders in your CMMS.

Topic	What to Do	When	Result
Use-case mapping	Choose full-port for mains; NRS for confined areas	Planning	Less pressure loss and space efficiency
Handling/installation	Lift properly, align, then cross-torque bolts	Installation	Avoids stress-related leaks
Operational checks	Confirm handwheel feel; perform pressure tests	Commissioning and routine	Predictable operation and tight shutoff
Recordkeeping	Tag valves and link to account/CMMS	Throughout lifecycle	Faster parts tracking and replacements

Proper handling and commissioning extend service life and keep the Resilient Seated Gate Valve looking and working like new.

Let’s Specify the Right Iron Gate Valve at Yaxing Valve Today

Send line size, pressure, and flow targets so I can match the right series/type to your duty and temperature envelope.

A short checklist helps submittals pass first review: ends, inside-screw or non-rising choice, handwheel orientation. I also capture stem/handwheel and screw details for clear install guidance.

Check the image gallery for high-resolution views with layouts showing clearance and operator reach. Open an account so specs are saved, valves are tag-tracked, and drawings/one-page PDFs are linked.

Reach out for a quick quote—I’ll confirm stock, lead times, series alternatives, and help you finish the order while you review the gallery. We only use cookies to keep your session and cart active.

Prototype CNC Machining: Fast Prototype Solutions

Fun fact more than forty percent of product engineering teams reduce launch timelines by half with quick-turn prototype workflows that mimic production?

UYEE Prototype delivers a U.S.-focused program that speeds validation testing with immediate online quoting, automated DfM feedback, and order tracking. Teams can obtain components with an average lead time down to 48 hours, so companies check FFF ahead of tooling for titanium machining.

The offering includes 3–5 axis milling and precision turning together with sheet metal, SLA 3D printing, and quick-turn injection molding. Post-processing and finishing arrive integrated, so components come ready to test or investor demos.

This process keeps friction low from model upload to finished parts. Wide material selection and production-relevant quality levels let engineers perform reliable mechanical tests while maintaining schedules and budgets consistent.

• UYEE Prototype caters to U.S. customers with quick, manufacturing-like prototyping options.
• On-demand quotes and automated DfM accelerate go/no-go choices.
• Common turnaround can be as short as two days for many orders.
• Challenging features machined through advanced milling and CNC turning.
• >>Integrated post-processing ships parts demo-ready and test-ready.

Precision CNC Prototyping Services by UYEE Prototype

An attentive team with a turnkey process positions UYEE Prototype a dependable ally for tight-tolerance parts.

UYEE Prototype provides a straightforward, turnkey services path from file upload to completed parts. The platform supports Upload + Analyze for immediate pricing, Pay & Manufacture with encrypted checkout, and Receive + Review via online tracking.

The experienced team supports DfM, material selection, tolerance planning, and finishing approaches. Multi-axis equipment and in-process controls ensure consistent accuracy so test parts hit both functional and aesthetic targets.

Clients gain integrated engineering feedback, scheduling, quality checks, and logistics in one consolidated offering. Daily factory updates and proactive schedule management keep on-time delivery a priority.

• Single-vendor delivery: one source for quoting, production, and delivery.
• Repeatability: documented QC gates and standardized procedures produce consistent results.
• Scalable support: from individual POC builds to short runs for assembly-level evaluation.

Prototype CNC Machining

Quick, production-like machined parts take out weeks from development schedules and expose design risks early.

CNC prototypes increase iteration speed by removing long tooling lead times. Engineers can order limited batches and test form, fit, and function in days instead of months. This compresses schedules and minimizes late-stage surprises before full manufacturing.

• Rapid iteration: bypass tooling waits and check engineering hypotheses earlier.
• Load testing: machined parts deliver tight tolerances and stable material properties for stress and heat tests.
• 3D printed vs CNC: additive is fast for visual models but can show directional weakness or lower strength in high-load tests.
• Injection trade-offs: injection and molded runs make sense at volume, but tooling expense often hurts early-stage choice.
• Best fit: precision fit checks, assemblies needing exact feature relationships, and controlled A/B comparisons.

UYEE Prototype helps select the best route for each stage, balancing time, budget, and fidelity to minimize risk and advance key milestones.

CNC Capabilities Tailored for Quick-Turn Prototypes

High-end milling and turning assets let teams turn complex designs into testable parts at speed.

3-, 4-, and full 5-axis milling for intricate shapes

UYEE operates 3-, 4-, and full 5-axis milling centers that unlock undercuts, compound angles, and sculpted surfaces for enclosures and mechanisms.

Advanced milling minimizes fixturing and maintains feature relationships aligned with the original datum strategy.

Precision turning complements milling for coaxial features, threads, and bores used in shafts, bushings, and fittings.

Burr removal, edge-breaking, and secondary finishing ensure parts are safe for handling and test-ready.

Tight tolerances and surface accuracy for performance testing

Cutter path strategies and refined cutting parameters balance speed with dimensional accuracy.

Machine selection and advanced medical device prototyping fixturing improve repeatability across multiple units so test data remains reliable.

UYEE matches tolerances to the test objective, prioritizing the features that drive function and assembly performance.

Capability	Benefit	When to use
3-axis	Efficient simple geometries	Basic enclosures
4-/5-axis	Access to hidden faces	Complex enclosures, internal features
Turning	Tight runout control	Shafts, bushings, threaded components

From CAD to Part: Our Simple Process

A single, end-to-end workflow converts your CAD into ready-to-test parts while minimizing wait time and rework. UYEE Prototype manages every step—quote, DfM, build, and delivery—so your project keeps to plan.

Upload and analyze

Upload a CAD file and receive an instant quote plus manufacturability highlights. The system highlights tool access, thin walls, and tolerance risks so designers can fix issues before production.

Pay and manufacture

Secure checkout finalizes payment and sets an immediate schedule. Many orders kick off fast, with average lead time as fast as two days for common prototype builds.

Receive and review

Online tracking shows build status, shipping estimates, and inspection reports. Teams share quotes, drawings, and notes in one place to speed internal approvals and align stakeholders.

• One flow for one-offs or multi-variant batches keeps comparison testing straightforward.
• Auto DfM lowers rework by catching common issues early.
• Transparent status updates save time and improve project predictability.

Step	What happens	Benefit
Upload & Analyze	Instant pricing and automated DfM report	Quicker iteration, fewer revisions
Pay & Manufacture	Secure checkout and priority scheduling	Short lead times; average 2 days for many orders
Receive + Review	Online tracking, documentation, team sharing	Predictable delivery and audit trail

Materials for Prototyping That Mirror Production

A materials strategy that aligns with production grades builds test confidence and move faster.

UYEE sources a diverse portfolio of metals and engineering plastics so parts perform like final production. That alignment enables representative strength/stiffness/thermal tests.

Metals for strength and corrosion resistance

Available metals include Aluminum 6061/7075/5052 for light structural work, stainless 304/316/316L for wet environments, brass C360, copper C110, titanium Gr5, mild and alloy steels, and a range of tool steels and spring steel for demanding loads.

Plastics for impact resistance and clarity

Plastics offered include ABS (and FR), PC, Nylon 6/12, POM, PP, PE, PMMA, PTFE, PEEK, PVC, FR4, and TPU. Options address impact resistance, transparency, chemical stability, and heat deflection.

How material choice affects tests

Matching prototype CNC machining material grade improves tolerance holding and surface quality, so fit and finish results match production reality. Hard alloys or filled plastics may influence achievable cosmetic finish and machining marks.

Category	Example Grades	When to Use
Light metal	Al 6061 / 7075	General structural parts
Corrosion resistance	SS 304 / 316L	Moisture-prone areas
High-performance	Titanium Gr5 / Tool steels	High load, heat, fatigue
Engineering plastics	PC, PEEK, Nylon	Precision plastic parts

UYEE works with you to balance machinability, cost, lead time, and downstream finishing to select the best material for meaningful results.

Surface Finishes and Aesthetics for Production-Grade Prototypes

Selecting an appropriate finish turns raw metal into parts that match production feel.

Standard finishes give you a quick path to functional evaluation or a clean demo. Standard as-milled keeps accuracy and speed. Bead blast provides a consistent matte, while Brushed finishes create directional grain for a sleek, functional look.

Anodizing improves hardness and corrosion resistance and can be dyed for color. Black oxide lowers reflectivity and provides mild protection. Electrically conductive oxidation preserves electrical continuity where grounding or EMI paths are critical.

Presentation painting and color

Spray painting provides matte/gloss choices plus Pantone matching for color fidelity. Painted parts can approximate final color and feel for stakeholder reviews and investor demos.

• Finish choice affects perceived quality and helps mirror production cosmetics.
• Achievable surface quality depends on base metal, toolpath, and handling sensitivity.
• UYEE Prototype supports a range of finishing paths—from durable textures for test articles to show-ready coatings for demos.

Finish	Benefit	When to Use
As-milled	Quick and accurate	Functional tests
Bead blast / Brushed	Uniform matte / brushed grain	Demo surfaces
Anodize / Black oxide	Wear resistance / low glare	Metal parts with wear or visual needs

Quality Assurance That Matches Your Requirements

Quality systems and inspection workflows deliver traceability and results so teams can trust data from tests and schedules.

ISO-aligned controls, first article compliance, CoC and material traceability

ISO-aligned procedures control incoming material verification, in-process inspections, and final acceptance to satisfy specifications. Documented controls improve consistency and enable repeatable outcomes across batches.

First Article Inspection (FAI) support establishes a dimensional baseline for critical builds before additional units proceed. Measurement strategies include CMM reports, calibrated gauges, and targeted feature checks to maintain precision and accuracy where it is critical.

Certificates of Conformance and material traceability are offered when requested to serve regulated manufacturing and procurement needs. Material and process trace logs show origin, heat numbers, and processing steps for audits.

• Quality plans are tailored to part function and risk, weighing rigor and lead time.
• Documented processes support repeatability and reduce variability in test outcomes.
• Predictable logistics and monitored deliveries maintain schedule adherence.

Intellectual Property Protection You Can Trust

Security for sensitive designs starts at onboarding and continues through every production step.

UYEE uses contractual safeguards and NDAs to keep CAD files, drawings, and specs confidential. Agreements specify handling, retention, and permitted use so your development work remains protected.

Controlled data handling methods reduce exposure risk. Role-based access, audit logs, and file traceability indicate who accessed or modified designs during quoting, manufacturing, and shipping.

Strict onboarding and data controls

Vendors and staff undergo strict onboarding with contractual obligations and training on confidentiality. Background checks and defined access limits align teams to protection methods.

• Secure file transfer and encrypted storage for additive-ready and machining-ready files.
• Traceable change history and signed NDAs for all external partners.
• Documented processes that govern quoting, production, inspection, and logistics.

Control	How it protects IP	When it applies
NDAs & contracts	Define legal obligations and remedies	From onboarding through project close
Access controls	Restrict access and track events	Quoting, CAM prep, manufacturing
Encrypted transfer & storage	Protect files in transit and at rest	All data handling
Trained team	Promotes consistent secure handling	All service and development phases

Industry Applications: Validated Across Demanding Use Cases

High-stakes programs in medicine, aerospace, and defense demand accurate parts for reliable test results.

Medical and dental teams employ machined parts for orthotics, safe enclosures, and research fixtures that need tight tolerances.

Precise metal selection and controlled finishes reduce risk in clinical tests and regulatory checks.

Automotive

Automotive applications include fit/function interiors, brackets, and under-hood components exposed to heat and vibration.

Quick cycles support assembly verification and service life before committing to production tooling.

Aerospace and aviation

Aerospace relies on accurate manifolds, bushings, and airfoil-related parts where small deviations affect airflow and safety.

Inspection plans center on critical dimensions and material traceability for flight testing readiness.

Defense and industrial

Defense and industrial customers require durable communication components, tooling, and machine interfaces that survive harsh duty.

UYEE Prototype adapts finish and inspection scope to match rugged operational demands and procurement standards.

Consumer electronics and robotics

Consumer electronics and robotics need fine features, cosmetic surfaces, and precise mechanisms for easy assembly and user experience.

Short runs of CNC machined parts accelerate design validation and help teams refine production intent before scaling.

• Industry experience helps anticipate risk and guides pragmatic test plans.
• Material, finish, and inspection are tuned to each sector’s operating and compliance needs.
• UYEE Prototype serves medical, automotive, aerospace, defense/industrial, consumer electronics, and robotics customers across the U.S.

Industry	Typical applications	Key considerations
Medical & Dental	Orthotics, enclosures, fixtures	Tight tolerances, biocompatible finishes
Automotive	Brackets, fit checks, under-hood parts	Heat, vibration, material durability
Aerospace	Manifolds, bushings, flight components	Dimensional accuracy, traceability
Consumer & Robotics	Housings, precision mechanisms	Cosmetic finish, fine features

Design for Machining: Prototyping Guidelines

A manufacturability-first approach focuses on tool access, stable features, and tolerances that match test needs.

Automated DfM feedback at upload identifies tool access, wall thickness, and other risks so you can modify the 3D model before production. UYEE aligns multi-axis selection to the geometry rather than forcing a 3-axis setup to approximate a 5-axis method.

Geometry, tool access, and feature sizing for 3–5 axis

Keep walls appropriately thick and long enough features within the cutter reach. Minimum wall thickness depends on material, but designing broader webs reduces chatter and tool deflection.

Use generous fillets at internal corners to allow proper cutter engagement. Deep, small pockets should be designed with access ramps or additional setups in mind.

Tolerance planning for appearance vs functional parts

Separate cosmetic and functional tolerances upfront. Tight form tolerances belong on mating surfaces. Looser cosmetic limits cut cost and reduce cost.

Define datum schemes and tolerance stacks for assemblies and kinematic mechanisms. Document measurement plans for critical features so acceptance criteria are well-defined before the first run.

• Set minimum wall thickness, feature depths, and fillets to improve tool access and stability.
• Use 5-axis when feature relationships or undercuts need single-setup accuracy; choose simple fixturing when speed matters.
• Specify best practices for threads, countersinks, and small holes to prevent tool deflection and ensure repeatable quality.
• Early DfM reviews reduce redesign cycles and speed prototyping iterations.

Focus	Design Rule	Benefit
Wall & Fillet	Wider webs, radiused corners	Reduced deflection, better surface finish
Setups	Prefer 5-axis for complex relations	Fewer fixtures, preserved geometry
Tolerances	Functional vs cosmetic	Cost control, faster cycles

Speed to Market: Lead Times and Low-Volume Runs

Quick-turn builds shorten schedules so engineers can progress to testing quickly.

UYEE supports rapid prototyping with average lead times as fast as two days. Rapid scheduling and standardized setups cut lead time for urgent EVT and DVT builds.

Low-volume runs bridge the gap to pilot and support assembly testing or limited market trials. Short-run parts keep the same inspection, documentation, and traceability as one-off parts.

Teams can reorder or revise parts quickly as development learning builds. Tactical use of CNC allows deferring expensive tooling until the design stabilizes, reducing sunk cost.

Reliable delivery rhythm aligns test plans, firmware updates, and supplier readiness so programs remain on track.

Attribute	Typical Range	When to Use
Lead time	1–5 days (avg 2 days)	Urgent engineering builds
Run size	1–200 units	Validation, pilot trials
Quality & docs	FAI, CoC, inspection reports	Regulated tests, production handoff
Flexibility	Fast reorders, design revisions	Iteration-driven development

CNC vs Injection Molding and 3D Printing for Prototypes

Choosing the right fabrication route can cut weeks and costs when you move from concept to test parts.

Small batches force a practical decision: avoid long lead times or accept tooling for lower unit cost. For many low-quantity runs, machined parts beat molds on schedule and upfront cost. Printing is fastest for concept visuals and complex internal lattices, but may not match mechanical performance.

Cost, time, and fidelity trade-offs at low quantities

Injection molding requires tooling that can take many weeks and thousands in cost. That makes it hard to justify for small lots.

Machined parts avoid tooling fees and often deliver tighter dimensional control and stronger material behavior than many printed parts. Chips from metal removal are recyclable to reduce waste.

• Time: printing for hours to days; machining for days; injection may take weeks to months.
• Cost: low unit counts favor machining or printing; molding only pays off at volume.
• Fidelity: machining offers consistent tolerances and surface finish; printing can show anisotropy and layer artifacts.

When to bridge from CNC prototypes to molding

Plan a bridge to injection when the design is stable, tolerances are locked, and material choice is finalized. Use machined parts to prove fit, function, and assembly before tooling up.

Early DfM learnings from machined runs reduce mold changes and increase first-off success. Optimize raw stock, nest efficiently, and reclaim chips to improve sustainability during the transition.

Attribute	Best for	Notes
Printing	Ultra-fast concepts, complex lattices	Low strength; good for visual and some functional tests
Machining	Small lots, tight tolerances, mechanical tests	Avoids tooling; recyclability reduces waste
Injection	High-volume production	High upfront tooling; lowest unit cost at scale

Beyond CNC: Complementary On-Demand Manufacturing

Modern development benefits from a suite of on-demand methods that fit each milestone.

UYEE Prototype augments its offering with sheet metal, high-resolution 3D printing, and rapid injection molding to cover the full range of development needs.

Sheet metal fabrication uses laser cutting and bending for quick flat-pattern iterations. It is ideal for enclosures and brackets with formed features that are difficult or expensive to mill.

3D printing and SLA

SLA printing provides smooth surfaces and fine detail for concept models and complex internal geometries. It enables fast visual checks and fit trials before committing to harder materials.

Rapid injection molding

Rapid tooling, family molds, and multi-cavity options enable bridging to higher volumes once designs stabilize. Overmolding can add soft-touch or bonded layers in the same run.

Multi-process programs often mix CNC parts with printed components or sheet metal to speed subsystem integration. Material and process selection prioritize validation goals, schedule, and budget.

• Sheet metal: fast iterations for formed parts and brackets.
• SLA printing: high-accuracy surfaces and internal detail.
• Rapid molding: cost-effective bridge when volumes justify tooling.

Method	Best use	Key benefit
Sheet metal	Enclosures, brackets	Fast flat-pattern changes
SLA printing	Concept and internal features	Smooth finish, fine detail
Rapid molding	Bridge volumes	Production-like parts, repeatability

Get an Immediate Quote and Begin Now

Upload your design and get instant pricing plus actionable DfM feedback to minimize costly revisions.

Upload files for locked pricing and DfM insights

Send CAD files and receive an instant, guaranteed quote with auto DfM that flags tool access, thin walls, and tolerance risks.

The platform secures pricing and schedule so your project can move into production planning without delay.

Work with our skilled team for prototypes that look and perform like production

Our team works with you on tolerances, finishes, and materials to make product builds mirror final intent.

UYEE manages processes from scheduling through inspection and shipment, simplifying vendor coordination and keeping transparency at every step.

• Upload CAD for locked pricing and fast DfM feedback to reduce risk.
• Collaborative reviews synchronize tolerances and finishes to the product goal.
• Secure payments, online tracking, and clear status updates maintain visibility through delivery.

What	Benefit	When
Instant quote	Guaranteed pricing	Start project fast
DfM report	Fewer revisions	Design validation
Order tracking	Full visibility	On-time delivery

Start today to cut lead times and get product-ready, CNC machining work, including CNC machined and machined parts that support stakeholder reviews and performance tests.

In Summary

Bridge development gaps by using a single supplier that marries multi-axis capabilities with quick turnarounds and documented quality.

UYEE Prototype’s ecosystem of CNC equipment, materials, and finishes enables rapid prototyping with production-like fidelity. Teams gain access to multi-axis milling, turning, and a broad material set to match test objectives.

Choosing machining for functional work delivers tight tolerances, predictable material performance, and repeatable results across units. That consistency boosts test confidence and accelerates the move to production.

The streamlined process—from instant quote and auto DfM to Pay + Manufacture and tracked shipment—reduces schedule risk. Robust quality artifacts like FAI, CoC, and traceability maintain measurement discipline and surface outcomes.

Options across CNC, printing, and injection molding let you pick the right method at each stage. Start your next project now to get instant pricing, expert guidance, and reliable delivery that reduces time-to-market.

How to Identify Top Injection Molding Services in China

The important meeting has recently finished, your new product has been approved, the timeline is aggressive, and the budget is, let’s say, constrained.. And suddenly someone—perhaps your superior or the finance head—says the fateful words that make any project manager’s heart skip a beat: “We should look at sourcing this from China.”

Of course, you acknowledge. It seems sensible at first glance. The cost savings can be huge. Yet your thoughts are already spinning. You know the rumors, don’t you? The nightmare of defective parts, opaque communication, and delayed, off-spec shipments. It can feel like you’re being asked to walk a tightrope between landing a huge cost win for the company and steering your project straight into a ditch.

Here’s the thing, though. Sourcing plastic mold company doesn’t have to be a gamble. It’s no different from any structured project. And its outcome hinges on the approach you take. It’s less about finding the absolute cheapest quote and more about finding the right partner and managing the process with your eyes wide open. Forget the horror stories. Let’s walk through a real-world playbook for getting it right.

Step One: Do Your Homework

Before you even whisper the word “supplier” or open a browser tab to Alibaba, you need to get your own house in order. In fact, most overseas manufacturing headaches stem from a vague or incomplete RFQ. Don’t assume a remote factory can guess your needs. Sending a vague request is like asking a builder to quote you for “a house.” The responses you get will be all over the map, and none of them will be useful.

Your RFQ should be bulletproof—clear, detailed, and unambiguous. It’s the cornerstone of your entire effort.

What should you include?

Begin with 3D CAD models. These are non-negotiable. Provide files in common formats (e.g., STEP, IGS) to prevent import issues. This serves as the definitive part geometry reference.

But 3D isn’t enough. You also need detailed 2D drawings. This is where you call out the stuff that a 3D model can’t communicate. Think tolerances, material grades, finish specs, and any feature-critical notes. If a specific surface needs to be perfectly smooth for a seal, or a particular hole diameter is vital for an assembly, your 2D drawing needs to shout it from the rooftops.

Next up, material. Don’t just say “Plastic.” Even “ABS” alone is too vague. Be explicit. Specify SABIC Cycolac MG38 in black, if that’s the resin you need. Why be exact? Because plastic grades vary by the thousands. Specifying the exact resin grade ensures you get the strength, flexibility, UV resistance, and color consistency you planned for with what is plastic mold.

Your supplier might propose substitutes, but you must set the baseline.

Don’t forget the commercial info. What’s your forecasted annual volume (EAU)? A supplier needs to know if they’re quoting a tool that will make 1,000 parts in its lifetime or 1,000,000 parts a year. Cavity count, tooling cost, and per-unit pricing depend on volume.

Hunting for the Best Supplier

Okay, your RFQ package is a work of art. who will you target? Online sourcing is global but crowded. Locating vendors is easy; vetting them is the real challenge.

Begin on popular marketplaces such as Alibaba or Made-in-China. They offer breadth but not depth. Use them to build a shortlist, not the final list. Aim for a preliminary list of 10–15 potential partners.

Still, you must dig deeper. Think about engaging a sourcing agent. True, they charge a fee. But a reputable agent brings pre-screened factories. They bridge language and cultural gaps. As a newcomer, this offers priceless security. It’s schedule protection.

Another tactic: trade exhibitions. With budget permitting, Chinaplas or similar shows are invaluable. Nothing beats a face-to-face conversation. Inspect prototypes, interview engineers, and sense their capabilities. And don’t forget the oldest trick in the book: referrals. Consult trusted colleagues. A solid referral can be more valuable than any ad.

Separating Real Suppliers from Pretenders

After firing off that RFQ to a broad pool, bids begin to arrive. You’ll see ridiculously low offers and steep quotes. Your job now is to vet these companies and narrow it down to two or three serious contenders.

What’s the method? It involves both metrics and gut feel.

Begin with responsiveness. Are their replies prompt and clear? Do they communicate effectively in English? The true litmus: are they raising smart queries? Top vendors will critique and inquire. “Have you considered adding a draft angle here to improve ejection?” or “We see your tolerance requirement here; our CMM can verify that, but it will add to the inspection time. Is that acceptable?” This is a massive green flag. It shows they’re engaged and experienced. A supplier who just says “No problem” to everything is a walking red flag.

Then confirm their machinery specs. Ask for a list of their equipment. Review examples of parts akin to your design. A small-gear shop won’t cut it for a big housing.

Next up: the factory audit. This is not optional. You would never hire a critical employee without an interview, so why would you send tens of thousands of dollars for a tool to a company you’ve never truly vetted? Either visit in person or engage a local audit service. They’ll send a local inspector to the factory for a day. They will verify the company is real, check their quality certifications like ISO 9001, assess the condition of their machinery, and get a general feel for the operation. It’s a tiny cost for huge peace of mind.

Converting Digital Designs into Molded Parts

After picking your vendor, you agree on 50% deposit to start toolmaking and 50% balance after sample sign-off. Then comes the real action.

Initially, expect a DFM report. DFM means Design for Manufacturability. It’s the engineering critique for moldability. They’ll flag thick sections prone to sink, sharp edges that stress, or insufficient draft. A thorough DFM is a sign of a professional operation. It becomes a joint effort. Together, you tweak the design for best manufacturability.

When you greenlight the DFM, they machine the mold. In a few weeks, you’ll see “T1 samples are on the way.” These represent the first trial parts. They are your moment of truth.

Expect T1s to need tweaks. It’s par for the course. Look for small flaws, slight size errors, or surface marks. You’ll provide detailed feedback, they’ll make small adjustments (or “tweaks”) to the tool, and then they’ll send you T2 plastic mold samples. It could require several iterations. The key for you, as the project manager, is to have this iteration loop built into your timeline from the start.

Eventually, you will receive a part that is perfect. It meets every dimension, the finish is flawless, and it functions exactly as intended. This is your golden sample. You formally approve it, and this sample is now the standard against which all future mass-produced parts will be judged.

Final Steps to Mass Production

Landing the golden sample is huge, yet the project continues. Next up: mass manufacturing. How do you maintain consistency for part 10,000?

Implement a robust QC plan. Typically, this means a pre-shipment audit. Bring in an external QC firm. They’ll randomly select parts, compare them to specs and golden sample, and deliver a detailed report. They provide a photo-filled inspection report. Once you sign off, you greenlight shipping and the last payment. This audit shields you from mass defects.

Lastly, plan logistics. Know your shipping terms. Are you on FOB terms, where they load and you take over? Or EXW, where you handle everything from their gate? These choices hugely affect landed cost.

Sourcing from China is a marathon, not a sprint. It relies on partnership-building. Treat them like a partner, not just a line item on a spreadsheet. Open dialogue, trust, and rigorous procedure deliver results. It’s a challenging project, no doubt. But with this framework, it’s one you can absolutely nail, delivering the cost savings everyone wants without sacrificing your sanity—or the quality of your product. You’ve got this.
